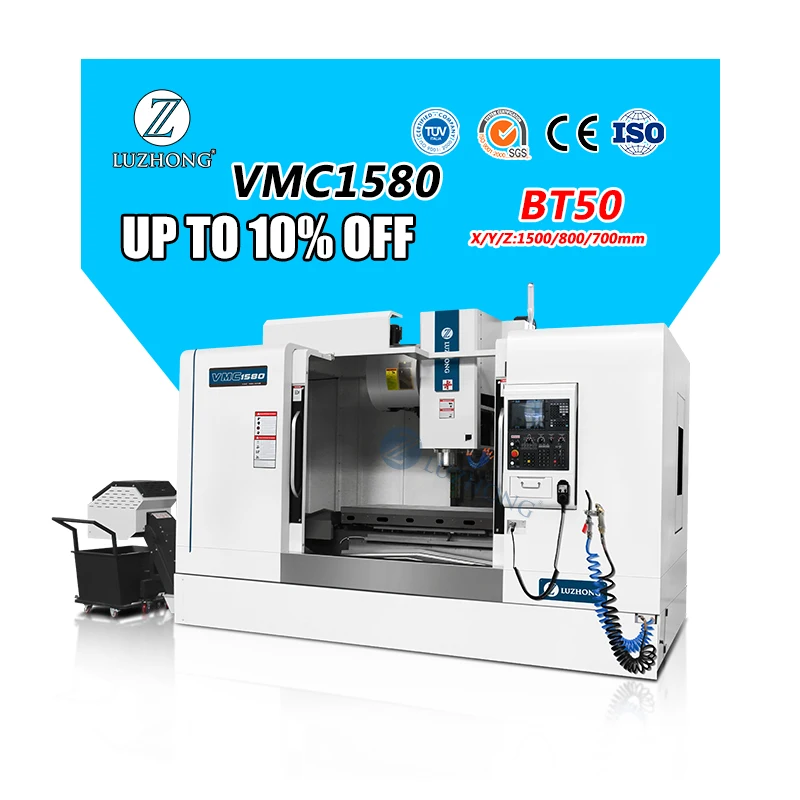

VMC1580 Vertical 5 Axis CNC Machining Center
VMC1580 Vertical 5 Axis CNC Machining Center
| type | VERTICAL | table travel (x) (mm) | 1500 |
| table travel (y) (mm) | 800 | table travel (z) (mm) | 700 |
| repeatability (x/y/z) (mm) | ±0.0075 | positioning accuracy | ±0.01 |
| spindle taper | BT50 | no. of spindles | 1 |
| tool magazine capacity | 24 | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | customized option |
| table size | 1700x800 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 1 |
| key selling points | Competitive Price | weight (t) | 13 |
| max. table load(kg) | 1500 kg(3306.93lb) | dimension(l*w*h) | 4300x3200x3100 |
| range of spindle speed | 1 - 6000 r.p.m | rapid feed speed | 1 - 10000 mm/min(0.04-393.70in/min) |
| Product name | center machining cnc VMC1580 vertcial 5 axes cnc machining center | Color | Customized Option |
| Packing | plywood case | Table size | 1700x800 mm |
| X axis travel | 1500mm | Y axis travel | 800mm |
| Z axis travel | 700mm | Max. worktable load | 1500kg |
| T slot(number-width-pitch) | 5-22x135 | Max. spindle speed | 6000rpm |
| Condition | New | Marketing Type | New Product 2020 |
| Warranty of core components | 13 months |
