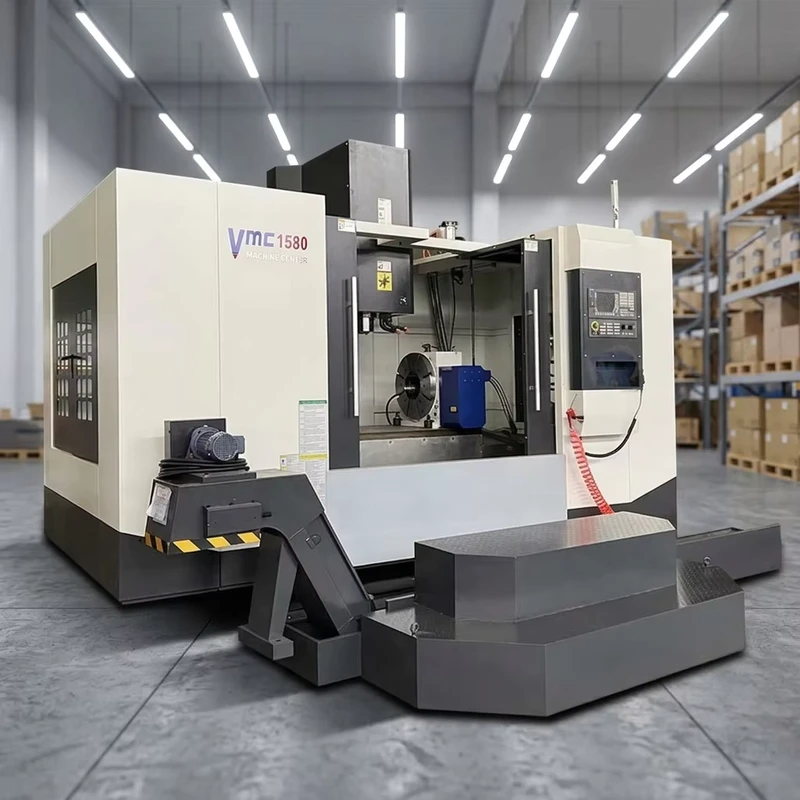

VMC1580 CNC Machining Centers 3 Axis Milling Machines Vertical CNC
VMC1580 CNC Machining Centers 3 Axis Milling Machines Vertical CNC
| type | VERTICAL | voltage | 3Phase 220V 380V 415V |
| table travel (x) (mm) | 1500 | table travel (y) (mm) | 800 |
| table travel (z) (mm) | 700 | positioning accuracy | ±0.01 |
| repeatability (x/y/z) (mm) | 0.005 | spindle taper | BT50 |
| cnc control system | FANUC SIEMENS GSK KND SYNTEC | machining capacity | Heavy Duty |
| no. of spindles | Single | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | High-Accuracy |
| max. table load(kg) | 1500 | range of spindle speed | 1 - 8000 |
| dimension(l*w*h) | 4300*3200*3100 | weight | 13000 |
| Product name | Milling Machine Center Frame | CNC or Not | CNC |
| Machine Type | CNC MILLING | Advantage | High Work Efficiency |
| Spindle motor | 15/18.5kw | System | GSK KND FANUC |
| Usage | Processing Machine | Table size | 1700*800mm |
