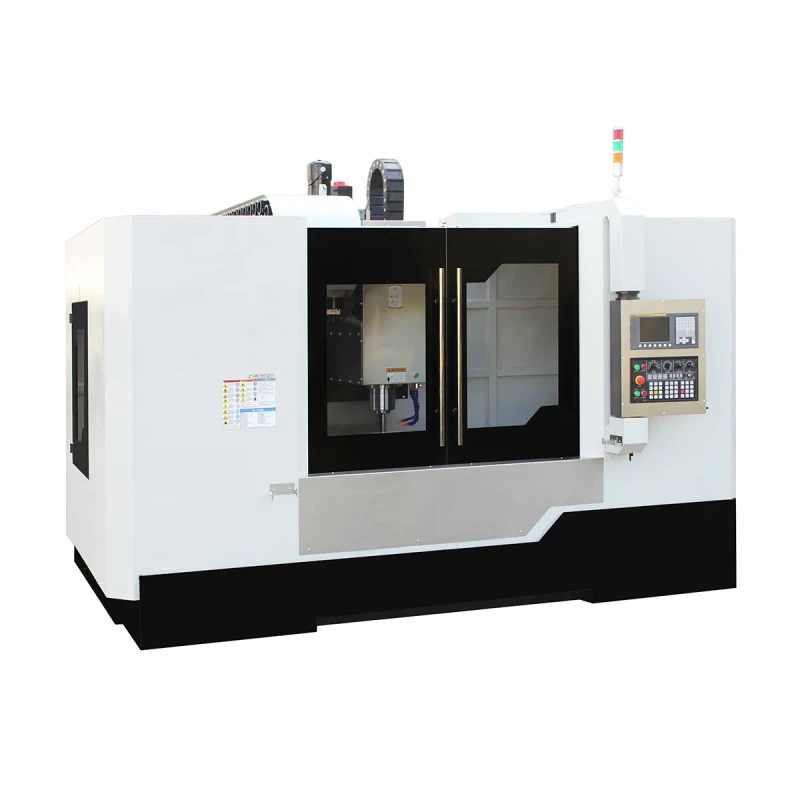

VMC1370 Precision Vertical CNC Machining Center Full Protection Complete Machine Tool Fanuc Control Systems
VMC1370 Precision Vertical CNC Machining Center Full Protection Complete Machine Tool Fanuc Control Systems
| type | VERTICAL | table travel (x) (mm) | 1300 |
| table travel (y) (mm) | 700 | table travel (z) (mm) | 750 |
| repeatability (x/y/z) (mm) | ±0.005 | positioning accuracy | ±0.005 |
| spindle taper | BT40-150 | no. of spindles | Single |
| tool magazine capacity | Other | cnc control system | FANUC |
| voltage | 220V/380V | table size | 1400*700 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 2 | key selling points | High-Accuracy |
| weight (t) | 8 | max. table load(kg) | 800 |
| dimension(l*w*h) | 3600*3000*2700 | range of spindle speed | 1 - 8000 r.p.m |
| Product name | CNC Vertical Machining Center | Product type | Machining Center Cnc Mill Machine |
| Precision | High Precision CNC Milling Machine | Worktable size | 1400x700 Mm |
| Function | Machining Metal | Core Components | Motor |
