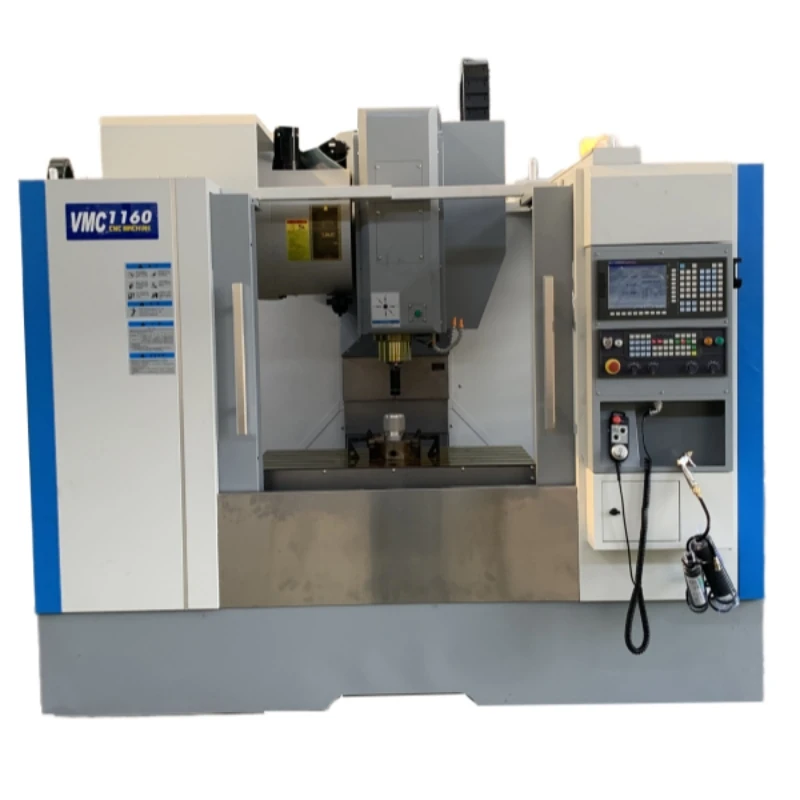

VMC1160 4 Axis CNC Milling Machine CNC Vertical Machining Center 3 Axis Vertical
VMC1160 4 Axis CNC Milling Machine CNC Vertical Machining Center 3 Axis Vertical
| type | VERTICAL | number of axes | 4 |
| voltage | Customer's Requirement | table travel (x) (mm) | 1100 mm(43.31in) |
| table travel (y) (mm) | 600 mm(23.62in) | table travel (z) (mm) | 600 mm(23.62in) |
| positioning accuracy | 0.006 | repeatability (x/y/z) (mm) | 0.008 |
| spindle taper | BT40-150BT | cnc control system | FANUC |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High-Accuracy | spindle motor power(kw) | 11 |
| max. table load(kg) | 800 kg(1763.70lb) | range of spindle speed | 100 - 12000 |
| dimension(l*w*h) | 2600mm*2200 mm*2500mm(102.36in*86.61in*98.43in) | weight | 6000 |
| Name | CNC Vertical Milling Machine 5 Axis VMC 1270 | CNC or Not | CNC |
| Machine Type | CNC Vertical Machining Center | Application | Metal Machining |
| Table size | 1200*600mm | Spindle Speed | 8000rpm |
| Spindle taper | BT40-150 | CNC Controller | SYNTEC/KND/SIEMENS/FANUC |
| Travel for X, Y, Z axis | 1100/600/600mm | ATC | 24Tools |
