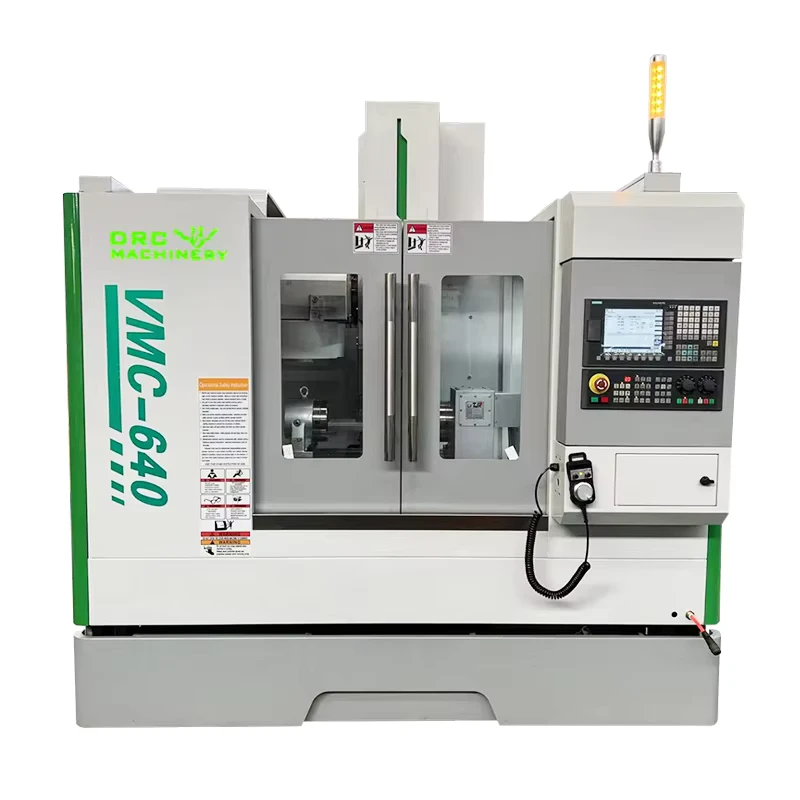

Vmc Machine Price Small 3 Axis Cnc Milling Machine VMC640 Chinese Vertical Cnc Machining Center VMC
Vmc Machine Price Small 3 Axis Cnc Milling Machine VMC640 Chinese Vertical Cnc Machining Center VMC
| type | VERTICAL | number of axes | 3 |
| table travel (x) (mm) | 600 | table travel (y) (mm) | 400 |
| table travel (z) (mm) | 450 | repeatability (x/y/z) (mm) | ±0.005 |
| positioning accuracy | ±0.008 | spindle taper | BT40 |
| no. of spindles | Single | tool magazine capacity | 16 |
| cnc control system | GSK, Siemens | voltage | 220/380V |
| table size | 800*320 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | High Productivity | weight (t) | 2.9 T(3.20short tons ) |
| max. table load(kg) | 400 kg(881.85lb) | dimension(l*w*h) | 2600*1950*2400mm(102.36*76.77*94.49in) |
| range of spindle speed | 10 - 8000 r.p.m | spindle motor power | 5.5 |
| GSK 25i CNC System8000rpm belt spindle | Bt40-120 Mini Cnc Machining Center | Machine tool lighting working lamp | Centralized automatic feed lubrication system |
| Spindles clean the air | Spindle taper: BT40 | Chip liquid system | Tricolor warning light |
| 10.4 "display | Separate handwheel | Servo transformer | RS232 interface |
| Foundation gasket and adjusting bolt | Three-axis precision grinding ball screw | Random technical document | Electrical cabinet cold and heat exchanger |
| Three ball type linear guide rail | X30mm/Y30mm/Z30mm | Low cost cnc machining center | Machining Center Cast Iron Frames |
