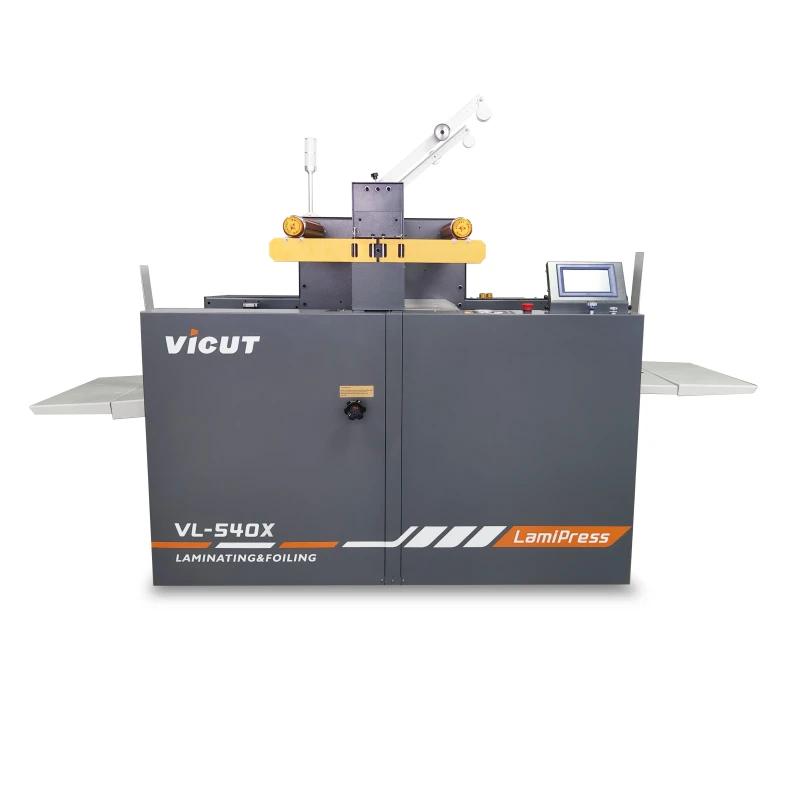

VICUT VL 540X Hot Foil Stamping Machine Laminating Machine Hot and Cold Industrial Roll Laminator Machine
VICUT VL 540X Hot Foil Stamping Machine Laminating Machine Hot and Cold Industrial Roll Laminator Machine
| Max Lamination Width | 12.5 in | Max Lamination Thickness | 7mil |
| voltage | 220V/110V | Lamination system | Cold/Hot |
| Adhesive Type | Pressure Sensitive | Laminating Speed | 39in/min |
| automatic grade | Automatic | driven type | Hydraulic |
| Press Roller Material | Stainless Steel | Warm-up Time | 12min |
| core components | PLC, Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Easy To Operate |
| application | Food, Beverage, Machinery & Hardware | packaging material | Wood |
| packaging type | Case | Weight (KG) | 470 |
| dimension(l*w*h) | 2000*900*1800mm(78.74*35.43*70.87in) | Min. Paper sheets | 297*210mm |
| Max. Paper sheets | 540*800mm Optional: length could add to 1200mm | Working mode | single-sided hot film, cold film, foiling |
| Heating method | electric heating | Warm-up time | 5-10 minutes |
| Laminating speed | 1m/min--10m/min | Coating temperature | 10---130°C |
| Paper thickness | 125gsm--400gsm | Mirror roller diameter | 176mm |
| Film Core diameter | 3inch |
