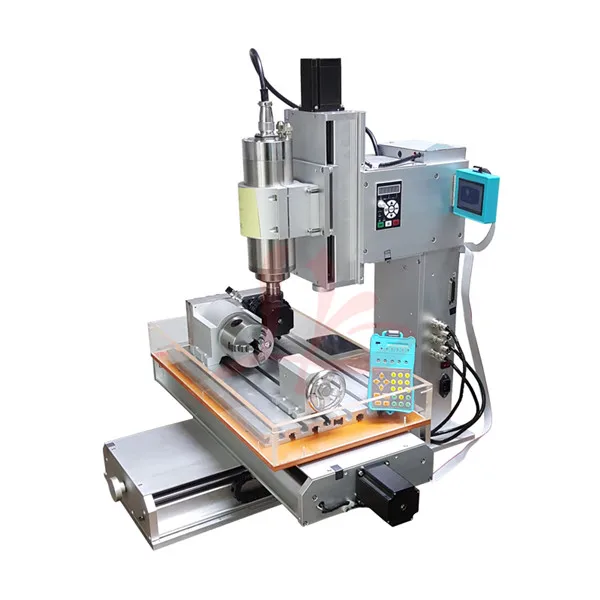

Vertical Type Wood Carving Machine CNC 30*40cm Milling and Drilling Machine

Vertical Type Wood Carving Machine CNC 30*40cm Milling and Drilling Machine
  • Vertical Type Wood Carving Machine CNC 30*40cm Milling and Drilling Machine

    • Vertical Type Wood Carving Machine CNC 30*40cm Milling and Drilling Machine

    Request a Quote
    Working Table Size(mm)300*400number of axes3
    voltageAC380V/50HZmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsHigh-Accuracy
    core componentsMotorcnc or notCNC
    Power (kW)2.2weight (kg)95
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01 mm(0in)
    travel (x axis)(mm)300 mm(11.81in)travel (y axis)(mm)400 mm(15.75in)
    repeatability (x/y/z) (mm)0.01 mm(0in)Spindle Motor Power (kw)2.2
    dimension(l*w*h)105*80*70cm(41.34*31.50*27.56in)After-sales Service ProvidedNo overseas service provided
    product dimension520(H)X660(L)X580(W) mmeffective working area300x400x(150)mm
    processing speed0-4000 mm/MinSwitching Power SupplyIntegrated 24V 350W
    Input power220V / 110V power supplyOutside packing80*70*85 (cm)
    CertificationCE ISOControl System Brandly
