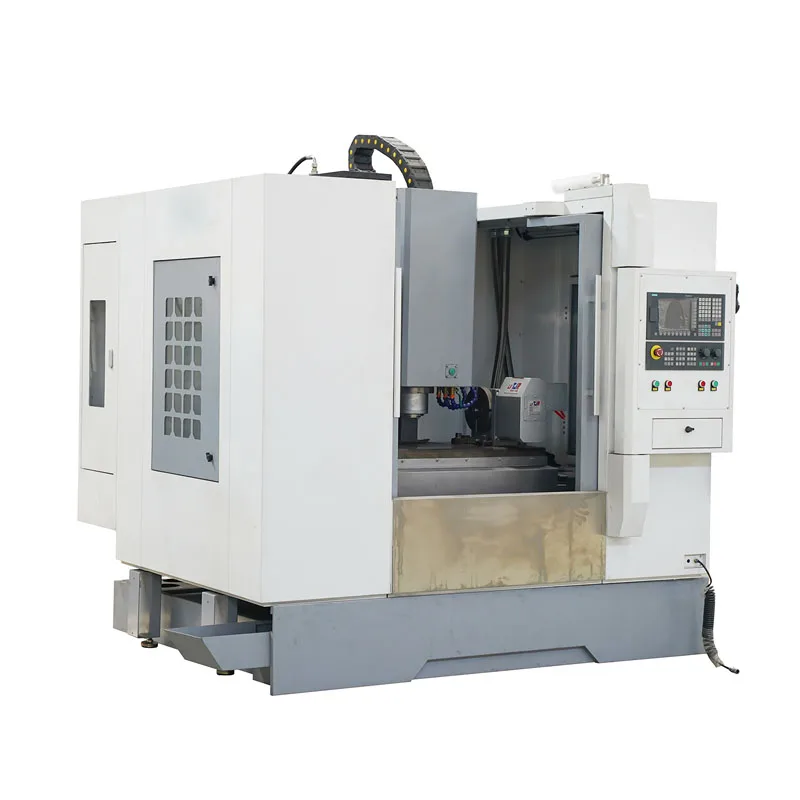

Vertical Type CNC New Machining Center VMC1580 CNC Milling Machines MVL1580

Vertical Type CNC New Machining Center VMC1580 CNC Milling Machines MVL1580
  • Vertical Type CNC New Machining Center VMC1580 CNC Milling Machines MVL1580

    • Vertical Type CNC New Machining Center VMC1580 CNC Milling Machines MVL1580

    Request a Quote
    typeVERTICALnumber of axes3
    voltage220v/380vtable travel (x) (mm)1500
    table travel (y) (mm)700table travel (z) (mm)800
    positioning accuracy±0.005repeatability (x/y/z) (mm)±0.003
    spindle taperBT40cnc control systemKND
    machining capacityMedium Dutyno. of spindlesSingle
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHigh Safety Levelmax. table load(kg)1300
    range of spindle speed20 - 8000dimension(l*w*h)2800X2400X2500
    weight135000Machine TypeCnc Vertical Milling Machine
    Table size1700x800mmmain motor power15KW
    Spindle taperBT40spinde speed range8000RPM
    Machine NameVertical CNC Machine CenterProduct nameCNC Machining center With High Quality
    KeywordVertical CNC Machining CenterMachineCNC Machine Center VMC1580
    TypeVMC1680 MVL1680 China CNC Vertical CNC Machining Center
