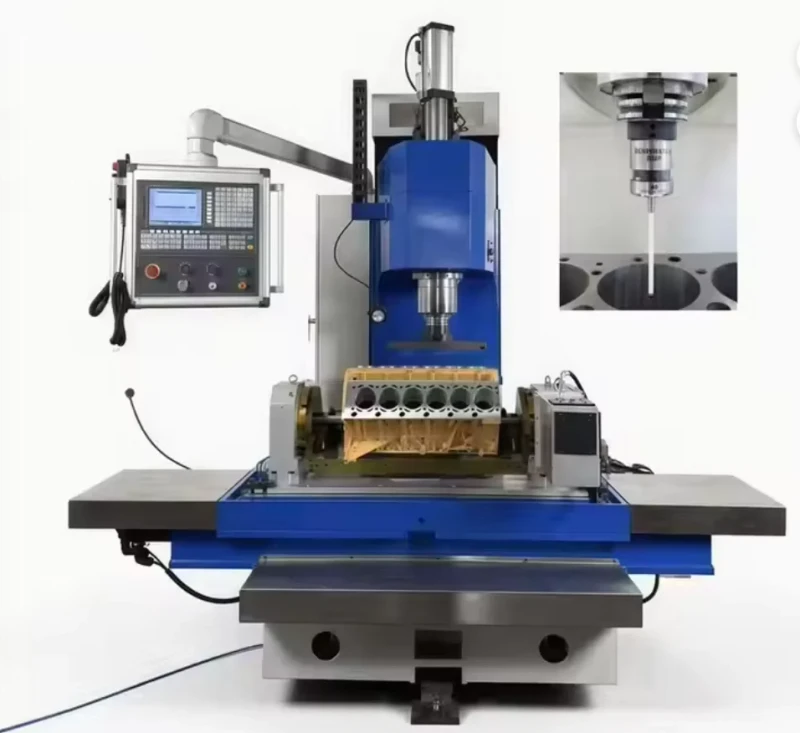

Vertical Fine Boring &Milling Machine TX200CNC
Vertical Fine Boring &Milling Machine TX200CNC
| type | VERTICAL | cnc or not | Normal |
| table size (mm) | 500X1500 | spindle motor power(kw) | 5.5 |
| number of axes | 3 | voltage | 380V/220V |
| no. of spindles | Other | Automatic Grade | Automatic |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Gearbox, CNC | key selling points | Multifunctional |
| table travel (x) (mm) | 1500 | table travel (y) (mm) | 300 |
| table travel (z) (mm) | 750 | range of spindle speed(r.p.m) | 4000 |
| weight (t) | 5 | max. table load(kg) | 800 |
| travel (w-axis) (mm) | 1350 | production capacity | 111 |
| dimension(l*w*h) | 3200*1700*2300 | max. boring diameter | 200mm |
| Max. boring depth | 300mm | max.Milling length | 400-1100mm |
