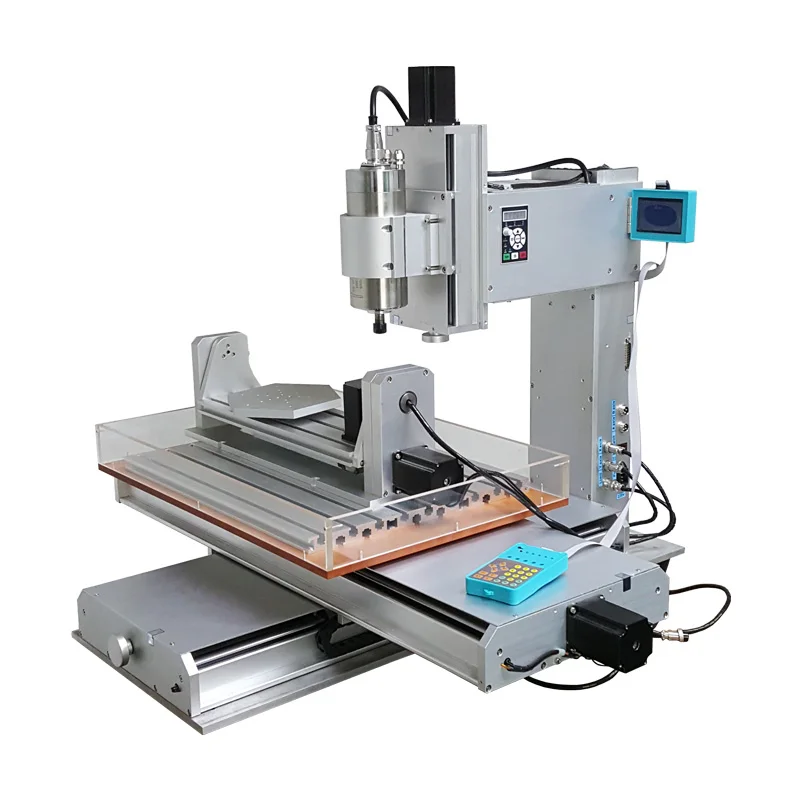

Vertical Engraving Machine CNC Router 6040 2.2KW with A Axis B Axis for Wood Milling Metal Engraving

Vertical Engraving Machine CNC Router 6040 2.2KW with A Axis B Axis for Wood Milling Metal Engraving
  • Vertical Engraving Machine CNC Router 6040 2.2KW with A Axis B Axis for Wood Milling Metal Engraving

    • Vertical Engraving Machine CNC Router 6040 2.2KW with A Axis B Axis for Wood Milling Metal Engraving

    Request a Quote
    Working Table Size(mm)300×400number of axes5
    voltage220V / 110V power supplymachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsOthercnc or notCNC
    video outgoing-inspectionNot Availablemachinery test reportNot Available
    Power (kW)1.5weight (kg)110
    range of spindle speed(r.p.m)1 - 180 rpmpositioning accuracy (mm)0.02 mm(0in)
    travel (x axis)(mm)600 mm(23.62in)travel (y axis)(mm)400 mm(15.75in)
    repeatability (x/y/z) (mm)0.01 mm(0in)Spindle Motor Power (kw)2.2
    dimension(l*w*h)970(H)X810(L)X790(W) mmwork area600x400x(150)mm
    Precision ball screw1605XYZ axis torque57*78 250 OZ/IN (2.2N/CM)
    Drive motor57*78 stepper motors (two-phase 4 wire)Spindle power1500W water-cooled frequency spindle
    Processing speed0-4000 mm/MinA-axis B-axis rotation speed0-180 rpm/min
