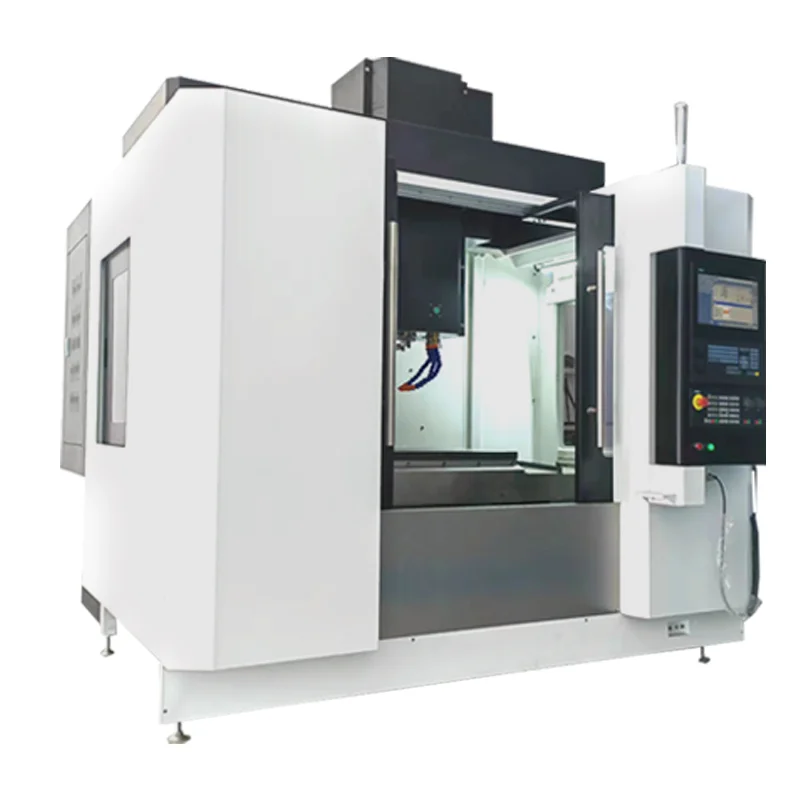

Vertical CNC Machining Center Fanuc Control Single Spindle BT40 3 Axis 1-12000 RPM 24 Tool Capacity
Vertical CNC Machining Center Fanuc Control Single Spindle BT40 3 Axis 1-12000 RPM 24 Tool Capacity
| type | VERTICAL | table travel (x) (mm) | 800 mm(31.50in) |
| table travel (y) (mm) | 500 mm(19.69in) | table travel (z) (mm) | 500 mm(19.69in) |
| repeatability (x/y/z) (mm) | 0.006 | positioning accuracy | 0.006 mm(0in) |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | FANUC |
| voltage | 380V/50HZ±10% | table size | 1000*500 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 1 | key selling points | Long Service Life |
| weight (t) | 5 | max. table load(kg) | 600 |
| dimension(l*w*h) | 18*4*125m(59.06*13.12*410.11ft) | range of spindle speed | 1 - 12000 r.p.m |
| Cnc vertical machine center | Cnc Machine Center 3 Axis | Table dimension | 1000*500mm |
| Max. operating speed | 48m/min | Max. machining speed | 24m/min |
| X,Y,Z positionaI accuracy | ±0.006/300mm | X,Y,Z Repeatability | ±0.006mm |
| system configuration | Mitsubishi/Syntec | External dimension | 2450*2750*2800 |
| Showroom Location | Spain |
