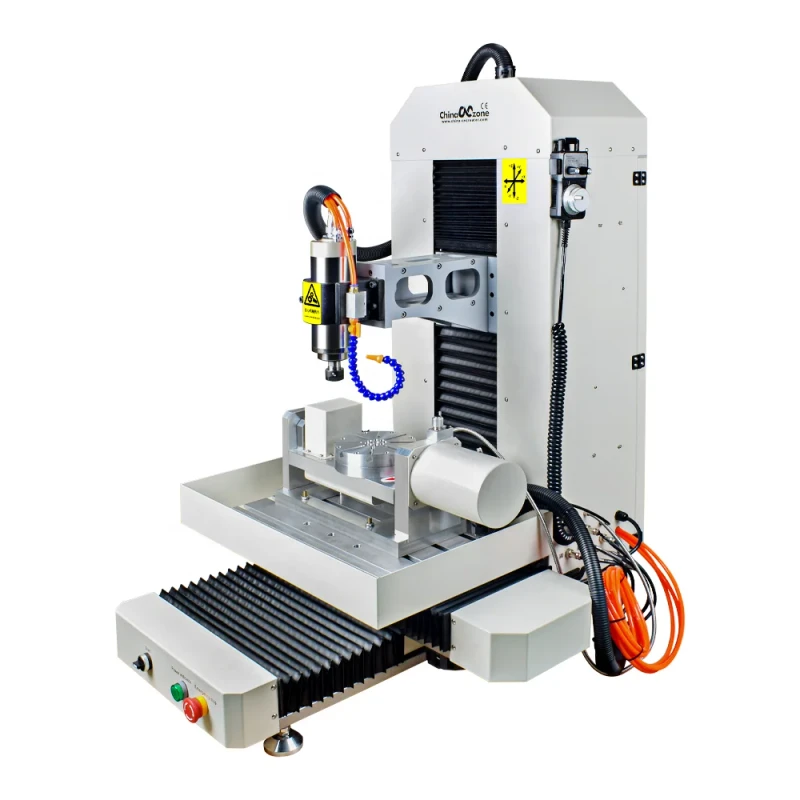

Vertical 3D CNC Router Machine for Marble Engraving and Metal Cutting
Vertical 3D CNC Router Machine for Marble Engraving and Metal Cutting
| type | VERTICAL | number of axes | 5 |
| voltage | 110V/220V | table travel (x) (mm) | 400 mm(15.75in) |
| table travel (y) (mm) | 300 mm(11.81in) | table travel (z) (mm) | 400 mm(15.75in) |
| positioning accuracy | 0.01 | repeatability (x/y/z) (mm) | 0.01 |
| spindle taper | 250mm | cnc control system | mach3 |
| machining capacity | Light Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High-Accuracy | spindle motor power(kw) | 2.2 |
| max. table load(kg) | 60 kg(132.28lb) | range of spindle speed | 1 - 24000 |
| dimension(l*w*h) | 820*800*950mm(32.28*31.50*37.40in) | weight | 350 |
| Working table dimension | 500*300mm | Machine frame material | 45#steel |
| Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | Principal axis collet | ER-20 1-13mm |
| Repeat accuracy | 0.01mm | Spindle precision | radial beat accuracy 0.01 mm |
| Maximum speed | 0-4000mm/min | Computer connection | Ether port |
| Command code | Tap, nc ,ncc, txt | Safeguard | Limit switch |
