Professional manufacturer of woodworking machinery
Type Planing Thicknessing Multifunction Machine 342 Planer Jointer Thicknesser Saw Square Hole Drill Functions
Type Planing Thicknessing Multifunction Machine 342 Planer Jointer Thicknesser Saw Square Hole Drill Functions
| type | multifunction planer | max.planing width(mm) | 250 |
| voltage | 380 V | power (kw) | 2 kW(2.68hp) |
| Feed Rates | 10 m/min(32.81ft/min) | Cutter Type | Straight |
| core components | Engine | sliding table equipped | Yes |
| machinery test report | Provided | Number Of Blades | 3 |
| video outgoing-inspection | Provided | key selling points | High Productivity |
| max.planing depth(mm) | 3 | weight (kg) | 170 |
| dimension(l*w*h) | 1000X900X800 | Maximum Cutting(mm) Depth | 3 |

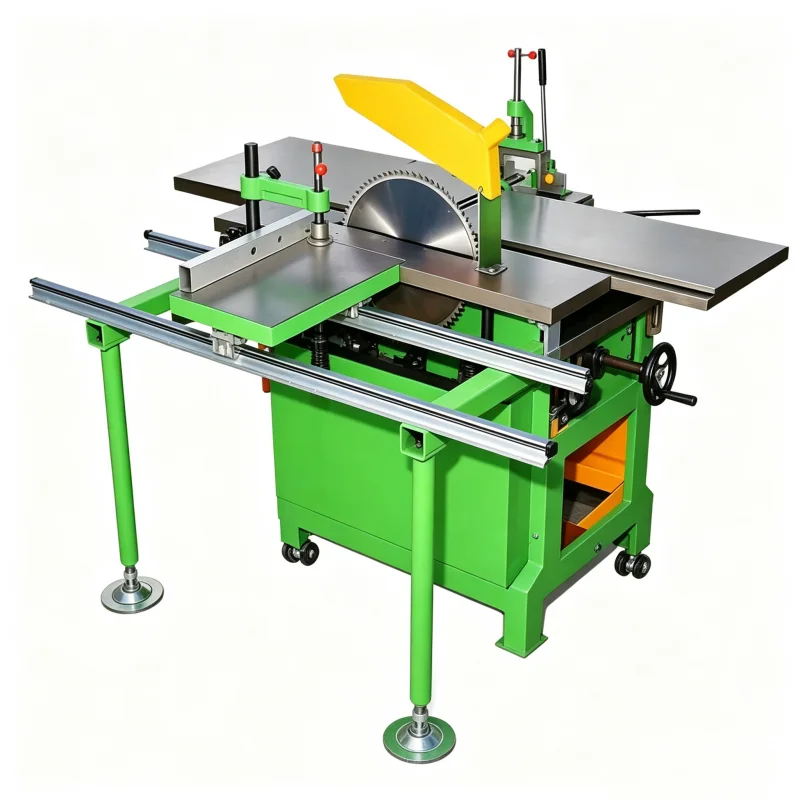

| Product Name | Bench Type Planing-Thicknessing Multifunction Machine | Model | SC0918 |
| Max. planing width | 260mm | Max. planing depth | 3mm |
| Max. sawing thickness | 80mm | Max. drilling diameter | 13 mm |
| Spindle speed | 4200r/min | Total motor power | 2.2kw |
| Overall dimensions | 1000X900X800 | Weight | 170kg |
