| Mill Granularity | 20-80mm(0.79-3.15in) | Number of Cutter | 12 |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | key selling points | Long Service Life |
| machinery test report | Provided | video outgoing-inspection | Provided |
| weight (kg) | 20000 | cutter diameter | 800mm(31.50in) |
| inlet diameter | 1250*500MM(49.21*19.69in) | dimension(l*w*h) | 12600*2600*3880mm(496.06*102.36*152.76in) |

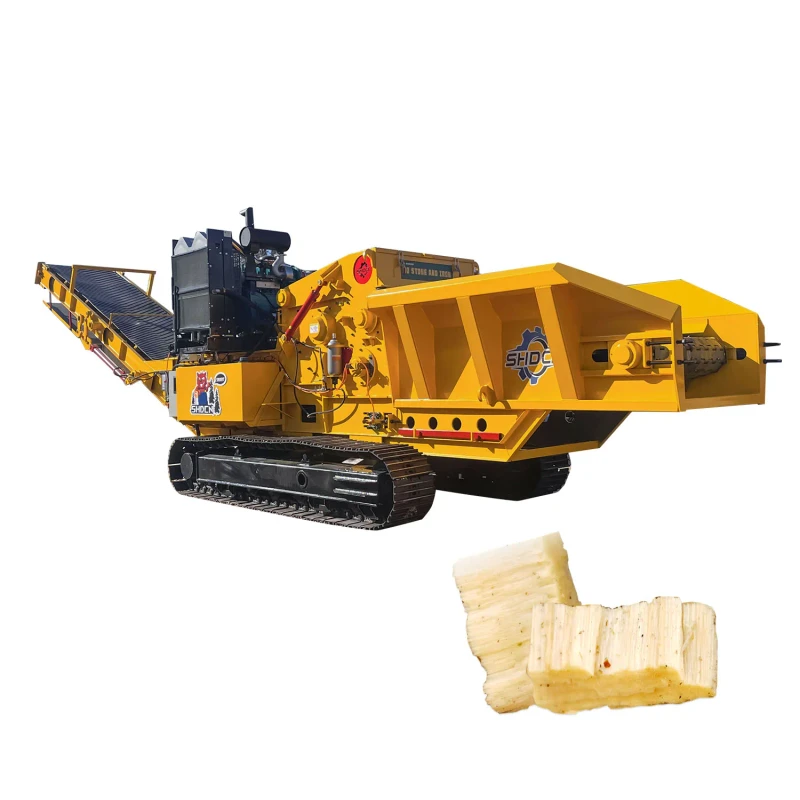

| Name | Track chip machine | Raw material | Bamboo,wood,wood pallet |
| Rotor Speed | 765RPM | Certificate | CE ISO |
| Conveyor Length*Width | 5m* 1.2m | Discharge Height | 3800-4900MM |
| Capacity | 20-30t/h | Main diesel engine brand | Weichai brand |
| Hydraulic Oil Tank | 300-630L | Feeding System | Hydraulic Motor |
