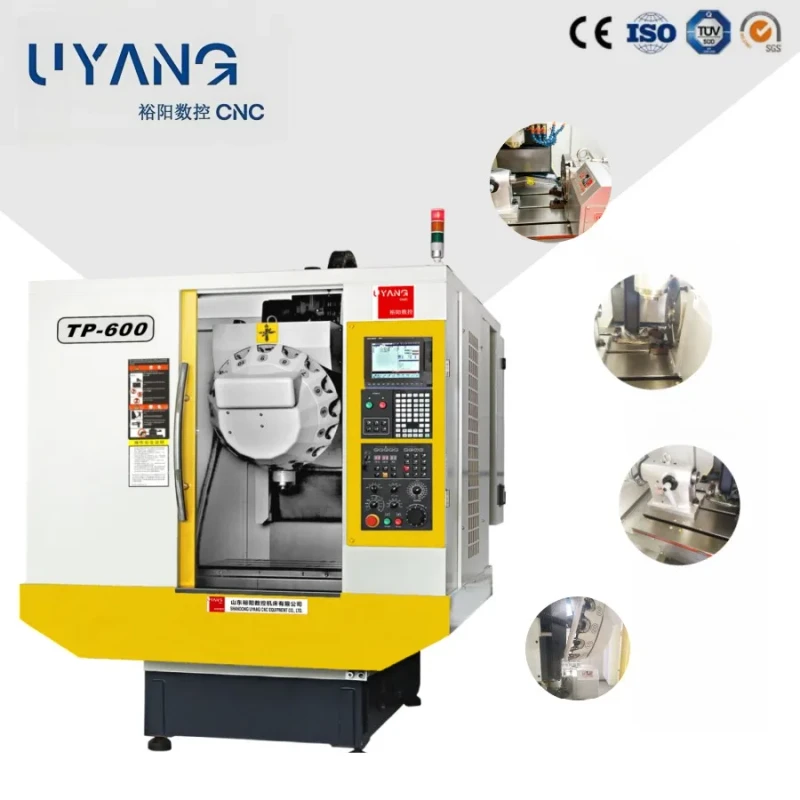

Tp600 CNC Machine Vertical CNC Drilling and Tapping Center High Precision Small Metal CNC Machining Center
Tp600 CNC Machine Vertical CNC Drilling and Tapping Center High Precision Small Metal CNC Machining Center
| type | VERTICAL | table travel (x) (mm) | 600 |
| table travel (y) (mm) | 400 | table travel (z) (mm) | 300 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.005 |
| spindle taper | BT30 | no. of spindles | Single |
| tool magazine capacity | 16 | cnc control system | Siemens |
| machining capacity | Medium Duty | voltage | 220 V, 380 V |
| table size | 400*600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 4, 6, 8 |
| key selling points | Multifunctional, Automatic, Competitive Price, High-Accuracy, Energy Saving, Eco-Friendly, Long Service Life | weight (t) | 3.4 |
| max. table load(kg) | 250 | dimension(l*w*h) | 1980*2210*2350 |
| range of spindle speed | 0 - 15000 | rapid feed speed | 0 - 1000 |
