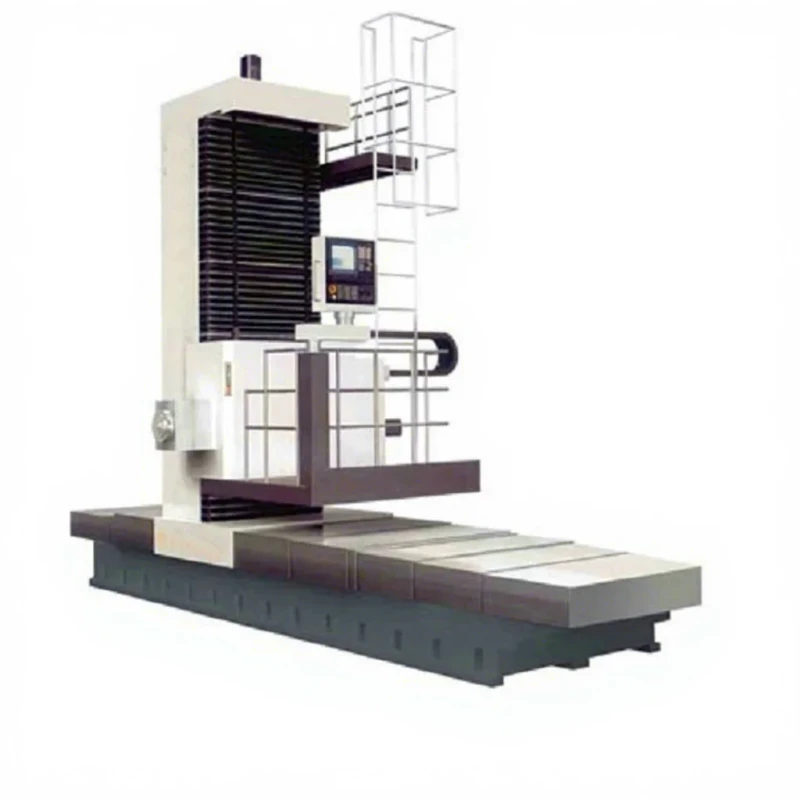

TK6920 200mm CNC Floor Type Horizontal Boring Milling Machine

TK6920 200mm CNC Floor Type Horizontal Boring Milling Machine
  • TK6920 200mm CNC Floor Type Horizontal Boring Milling Machine

    • TK6920 200mm CNC Floor Type Horizontal Boring Milling Machine

    Request a Quote
    typeHorizontalcnc or notCNC
    table size (mm)1600x1800spindle motor power(kw)65
    number of axes4voltageCustomer's Requirement
    no. of spindlesSingleAutomatic GradeAutomatic
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsSpindlekey selling pointsAutomatic
    table travel (x) (mm)8000table travel (y) (mm)4000
    table travel (z) (mm)1200range of spindle speed(r.p.m)650
    weight (t)115max. table load(kg)15000kg/m2
    travel (w-axis) (mm)1200dimension(l*w*h)5500 x1800 x 4000 mm(216.54x70.87x157.48in)
    After-sales Service ProvidedOnline support/Video technical support/Free spare partsMarketing TypeClassical CNC Borers
    ConditionNewShowroom LocationNone
    ColorFactory Standard or CustmizedCNCSiemens or Fanuc
    Warranty of core components1 YearSpindle diameter200mm/160/130mm opt.
    CertificationCE, ISO9001, GB/T19001:2008
