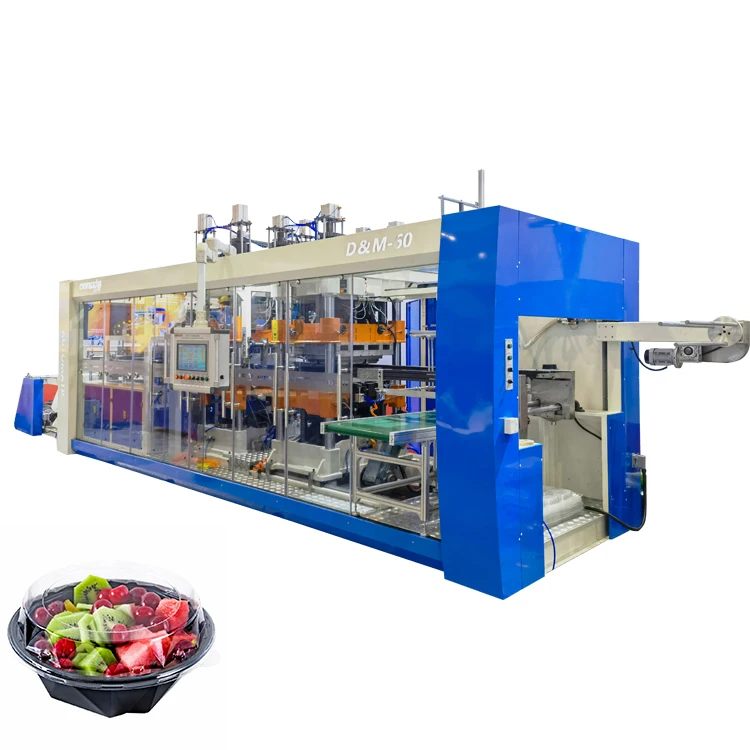

Three Station Fully Automatic Price Plastic Vacuum Thermoforming Machines Blister
Three Station Fully Automatic Price Plastic Vacuum Thermoforming Machines Blister
| plastic type | PS, BOPS, PP, BOPP, EPS, PET | product type | Fast Food Box |
| production speed(cycles/min) | 30.0cycles/min | voltage | 220V/380V/415V |
| core components | PLC, Engine, Motor, Pressure Vessel, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | High Productivity |
| dimension(l*w*h) | 11800*2400*2600mm(464.57*94.49*102.36in) | forming width (mm) | 780 |
| forming length (mm) | 600 | weight (t) | 13 |
| max.forming height(mm) | 130 | air pressure(mpa) | 0.7 |
| sheet thickness(mm) | 0.15 - 0.2 mm(0.01-0.01in) | heating power (kw) | 25 |
| air comsumption(l/min) | 2000 | water comsumption(l/min) | 60 |
| Product name | 3 station plastic thermoforming machine | Suitable material | PP PS PET polyvinyl chloride/plastic blister packaging/plastic lid |
| Three station | Forming-cutting-stacking | Forming method | Positive and negative pressure forming |
| Minimum molding die area | 420*300mm | Maximum sheet width | 810mm |
| Applicable sheet thickness | 0.15-2.0mm | Cutting knife line | 8M knife line |
| Maximum punching area | 780*600mm | Molded product height | 130mm |
