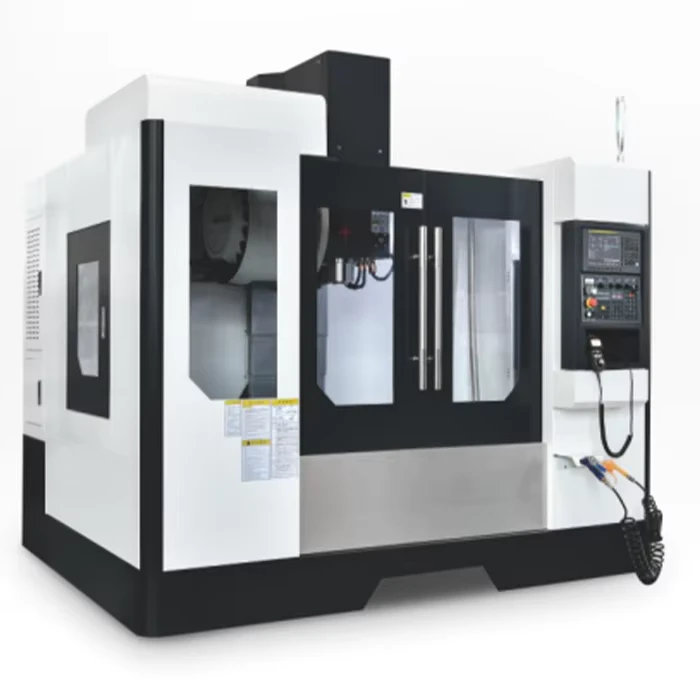

Taiwan Cnc Machining Center CNC Milling Machine
Taiwan Cnc Machining Center CNC Milling Machine
| type | VERTICAL | number of axes | 3 |
| table travel (x) (mm) | 600mm(23.62in) | table travel (y) (mm) | 400mm(15.75in) |
| table travel (z) (mm) | 450mm(17.72in) | repeatability (x/y/z) (mm) | ±0.0025/300mm |
| positioning accuracy | ±0.003/300mm | spindle taper | BT40 |
| no. of spindles | 3 | tool magazine capacity | 24 |
| cnc control system | KND | table size | 900*500mm(35.43*19.69in) |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 1 | key selling points | Competitive Price |
| weight (t) | 3.5 T(3.86short tons ) | max. table load(kg) | 250 kg(551.16lb) |
| dimension(l*w*h) | 2000*2450*2500 | range of spindle speed | 0 - 10000 r.p.m |
| spindle motor power | 7.5/11 | Distance from spindle nose to worktable | 150-600 |
| Track type | Linear guide | Worktable size | 700*420 |
| T-slot | 3-14*120 | Cutting feed | 1-10000mm/min |
| Tool change method | Side mount | Max. tool dia. | 80-120mm |
| Max. tool length | 300mm | Fastest tool change time | 1.6sec |
| Spindle torque | 52nm |
