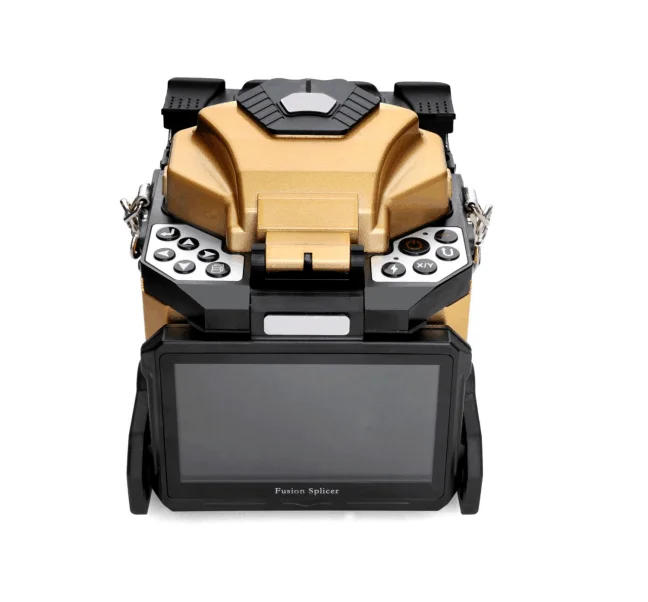

T 319s High Quality 6 Motor Core to Core Fiber Optic Splicer Aligment Fusion Splicing Machine
T 319s High Quality 6 Motor Core to Core Fiber Optic Splicer Aligment Fusion Splicing Machine
| Type | Fiber fusion splicer | Connector Type | APC |
| Power Source | Dc 12V | Use | ftth |
| Network | Gprs | Warranty Time | 2 |
| Port | SM | Power - Minimum Receivable | ≥60dB |
| Frequency Range | 50 groups | Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, FTTH drop cable |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) | Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) | Splicing Program | 50 groups |
| Heat-shrinkable T bush | 20mm, 40mm, 60mm | Language | Chinese, English |
| Battery | 12V 5800mAH | Dimensions | 120(W)*120(L)*130(H)mm |
| Weight | 1.2kg + 0.3kg (battery) |
