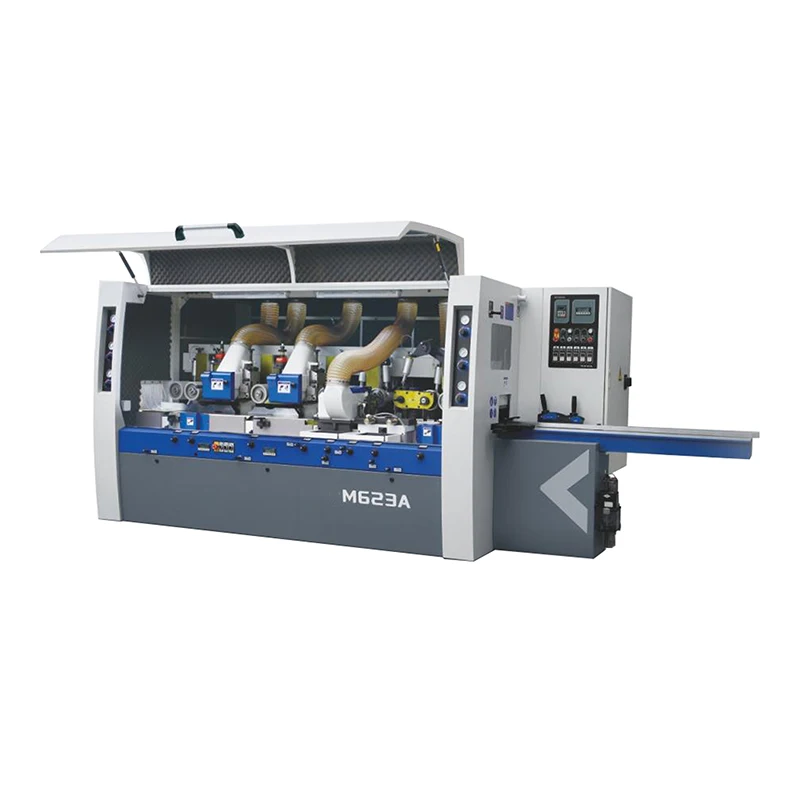

STR M523A M623A M823A Productivity Woodworking Industry High Motor Productivity 4 Spindle Four Side Wood Planer Moulder Machine

STR M523A M623A M823A Productivity Woodworking Industry High Motor Productivity 4 Spindle Four Side Wood Planer Moulder Machine
  • STR M523A M623A M823A Productivity Woodworking Industry High Motor Productivity 4 Spindle Four Side Wood Planer Moulder Machine

    • STR M523A M623A M823A Productivity Woodworking Industry High Motor Productivity 4 Spindle Four Side Wood Planer Moulder Machine

    Request a Quote
    typeFour Side Mouldermax.planing width(mm)230
    voltage380 V, 110 V, 220 V, customizedpower (kw)72.65KW/98HP
    Cutter TypeSpiralcore componentsMotor, PLC, Engine, Bearing, Gearbox, Pressure Vessel, Gear, Pump
    sliding table equippedNomachinery test reportProvided
    Number Of Bladescustomizedvideo outgoing-inspectionProvided
    key selling pointsRemote Controlmax.planing depth(mm)160
    weight (kg)6300dimension(l*w*h)L5250*W1750*H1880
    Maximum Cutting(mm) Depth160Processing width (mm)25-230
    Processing thickness (mm)8-160Front worktable length (mm)1970
    Feeding speed (m/min)6-36Spindle speed (r/min)6500
    Air source pressure (Mpa)0.6First upper axis7.5KW/10HP
    Air volume7.5KW/10HPFeeding5.5KW/7.5HP direct connection
    Right vertical axis (mm)125-180
