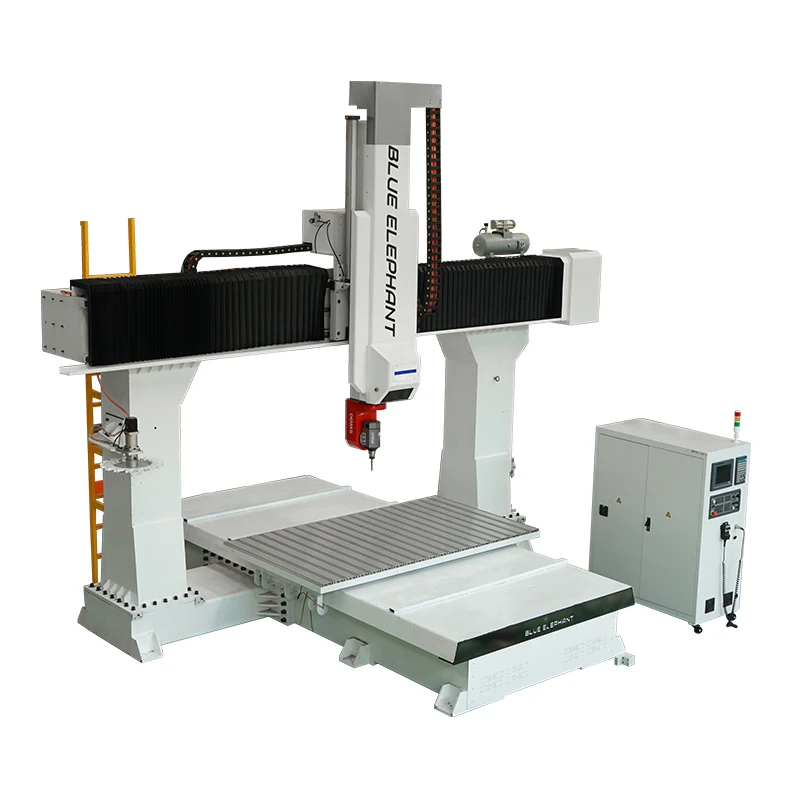

Stone Milling Machine 5Axis CNC Router for Metal
Stone Milling Machine 5Axis CNC Router for Metal
| Working Table Size(mm) | 1300x2500mm(51.18x98.43in) | number of axes | 5 |
| voltage | AC220V/60Hz 3P or AC380V 60HZ 3P | machine type | CNC Router |
| No. of Spindles | Single | key selling points | High-Accuracy |
| core components | Motor, Pump | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 10 | weight (kg) | 7600 |
| range of spindle speed(r.p.m) | 1 - 22000 rpm | positioning accuracy (mm) | 0.05 mm(0in) |
| travel (x axis)(mm) | 1800 mm(70.87in) | travel (y axis)(mm) | 3100 mm(122.05in) |
| repeatability (x/y/z) (mm) | 0.05 mm(0in) | Spindle Motor Power (kw) | 10kw(13.41hp) |
| dimension(l*w*h) | 3600*4000*3500mm(141.73*157.48*137.80in) | Application | Processing large-scale three-dimensional workpiece |
| Feature | 3D engraving | Spindle | Italy spindle, water-cooled |
| Inverter | Delta inverter | Servo Motor | Japan YASKAWA servo motor |
| Reducer | Japan SHIMPO | Table Surface | T-slot table and aluminum table coated with PVC |
| Control System | Taiwan Syntec 5 axis control system | Product name | Atc Cnc Router |
| Keywords | Cnc Wood Router Engraver |
