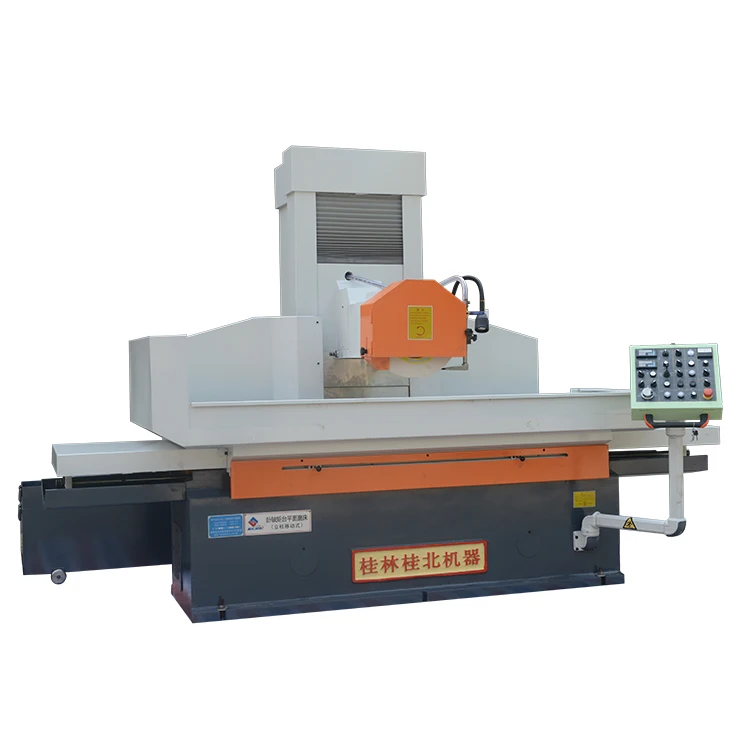

Small Multi Function Moving Surface Grinding Machine With Horizontal Spindle

Small Multi Function Moving Surface Grinding Machine With Horizontal Spindle
  • Small Multi Function Moving Surface Grinding Machine With Horizontal Spindle

    • Small Multi Function Moving Surface Grinding Machine With Horizontal Spindle

    Request a Quote
    voltage380 Vcnc or notCNC
    machinery test reportProvidedcore componentsMotor, Bearing, Gear, Pressure Vessel, Pump, PLC, Other, CNC
    key selling pointsCompetitive Pricevideo outgoing-inspectionProvided
    grinding length(mm)1250table travel (x) (mm)630
    table travel (y) (mm)1350wheel size(mm)450
    table size(mm)630x1250weight (kg)5100
    power (kw)25surface roughness(μm)0.63
    dimension(l*w*h)3600x3200x2200mm(141.73x125.98x86.61in)NameGrinder Machine
    Max.size of workpiece to be ground630x1250x400mmLongitudinal travel300~ 1350mm
    Table Max.table load capacity1015kgDistance spindle centre to table200~ 625mm
    Lateral movement stroke650mmWheel speed1460r/min
    Grinding motor power11kwTotal motor power25kw
    Equal thickness of the workpiece300:0.005mm
