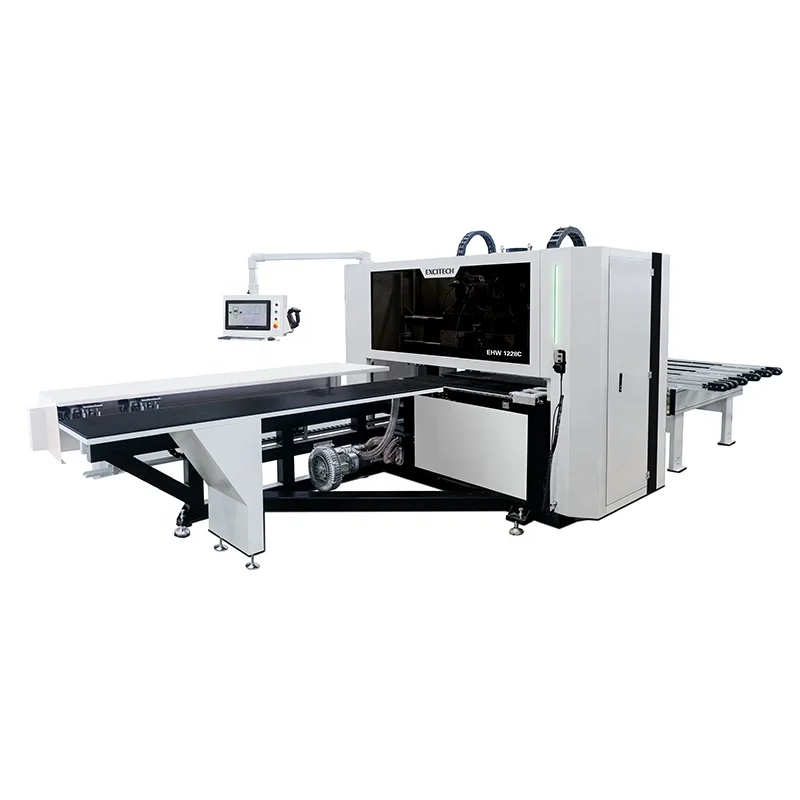

Six Side CNC Drilling Boring Machine for Cabinet

Six Side CNC Drilling Boring Machine for Cabinet
  • Six Side CNC Drilling Boring Machine for Cabinet

    • Six Side CNC Drilling Boring Machine for Cabinet

    Request a Quote
    Working Table Size(mm)1220*2440number of axes3
    voltage380Vmachine typeDrilling Machine
    No. of SpindlesMultikey selling pointsHigh Productivity
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)25weight (kg)4000
    range of spindle speed(r.p.m)0 - 18000 rpmpositioning accuracy (mm)0.1 mm(0in)
    travel (x axis)(mm)1220 mm(48.03in)travel (y axis)(mm)2440 mm(96.06in)
    repeatability (x/y/z) (mm)0.05 mm(0in)Spindle Motor Power (kw)3.5
    dimension(l*w*h)5.0*2.45*2M(16.40*8.04*6.56ft)Product nameSix-side cnc drilling boring machine for modular cabinet panel
    Travelling size4800*1450*150mmMax panel dimension2440*900*50mm
    Workpiece transportAir Floatation tableWorkpiece hold-downClamps
    Spindle power3.5KW*2Driving systemYaskawa
    Traveling speed80/130/30m/minDrilling bank configuration21 vertical + 8 horizontal
    Control systemSyntec
