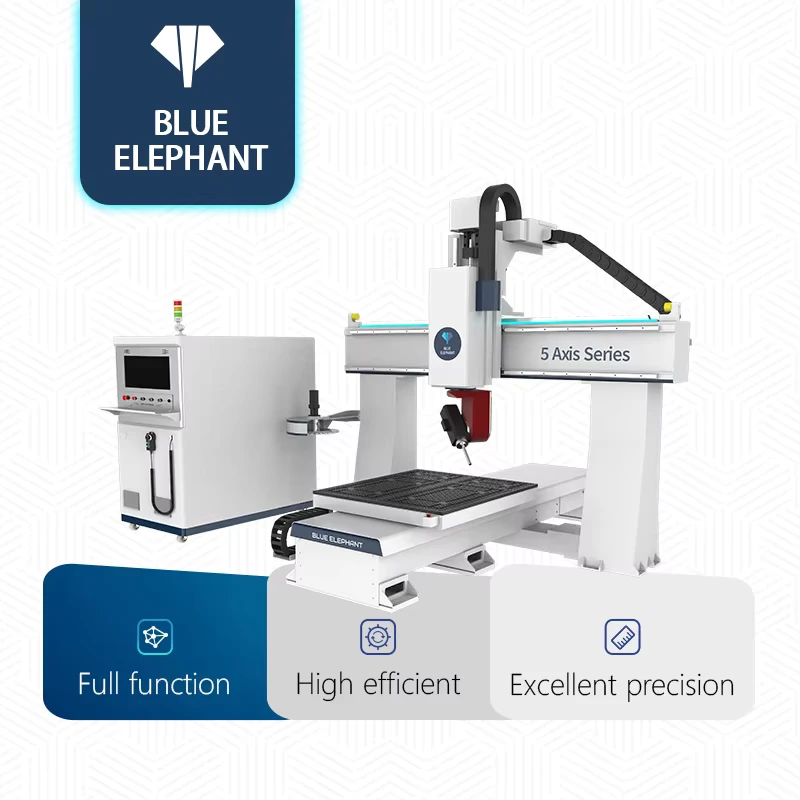

Single Table 5 Axis CNC Machining Center 3D Mold Engraving Machine with Fast Speed

Single Table 5 Axis CNC Machining Center 3D Mold Engraving Machine with Fast Speed
  • Single Table 5 Axis CNC Machining Center 3D Mold Engraving Machine with Fast Speed

    • Single Table 5 Axis CNC Machining Center 3D Mold Engraving Machine with Fast Speed

    Request a Quote
    Working Table Size(mm)1200×1200number of axes5
    voltageAC380V/60HZmachine typeCNC Router
    No. of SpindlesATCkey selling pointsAutomatic
    core componentsMotorcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)15weight (kg)3000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1200travel (y axis)(mm)1200
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)10
    dimension(l*w*h)2100x3000x200mm(82.68x118.11x7.87in)ModelOmic 1212F
    X working area (MM)1200Y working area (MM)1200
    Z working area (MM)500-700mmSpindle type10kw-12kw water cooling ATC spindle,24000RPM
    Inverter type15kw Taiwan Delta inverterLubrication system1.5L automatic lubrication system
    Tool calibrationAutomatic tool sensor calibrationTraveling speed80m/min
    Working voltage380V 3PH 50HZ/60HZ(220V for option)
