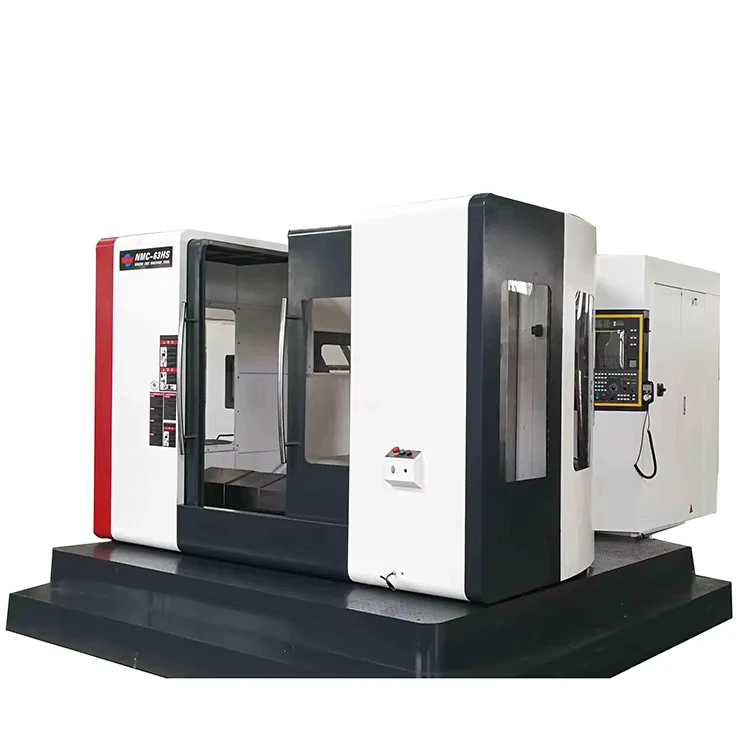

Simple Operation High Precision Automation CNC Horizontal Machining Center HMC
Simple Operation High Precision Automation CNC Horizontal Machining Center HMC
| type | Gantry | table travel (x) (mm) | None |
| table travel (y) (mm) | None | table travel (z) (mm) | None |
| repeatability (x/y/z) (mm) | ±0.001 | positioning accuracy | ±0.001 |
| spindle taper | ISO40 | no. of spindles | 3 |
| tool magazine capacity | 10 | cnc control system | GSK |
| machining capacity | Medium Duty | voltage | 220V 380V 415V |
| table size | 1360x700 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 1 |
| key selling points | High-Accuracy | weight (t) | 12000 |
| max. table load(kg) | 12000 | range of spindle speed | 0.01 - 0.02 |
| rapid feed speed | 0.01 - 0.02 | T-slots | 7*22mm |
| Torque | 162/243Nm | Max. tool weight | 15 |
| Max. workpiece width | 2000mm | Max.loading height | 950mm (can be customized) |
| Motor rating X / Y axis | 4.3KW | Motor rating Z axis (brakes) | 5.2KW |
