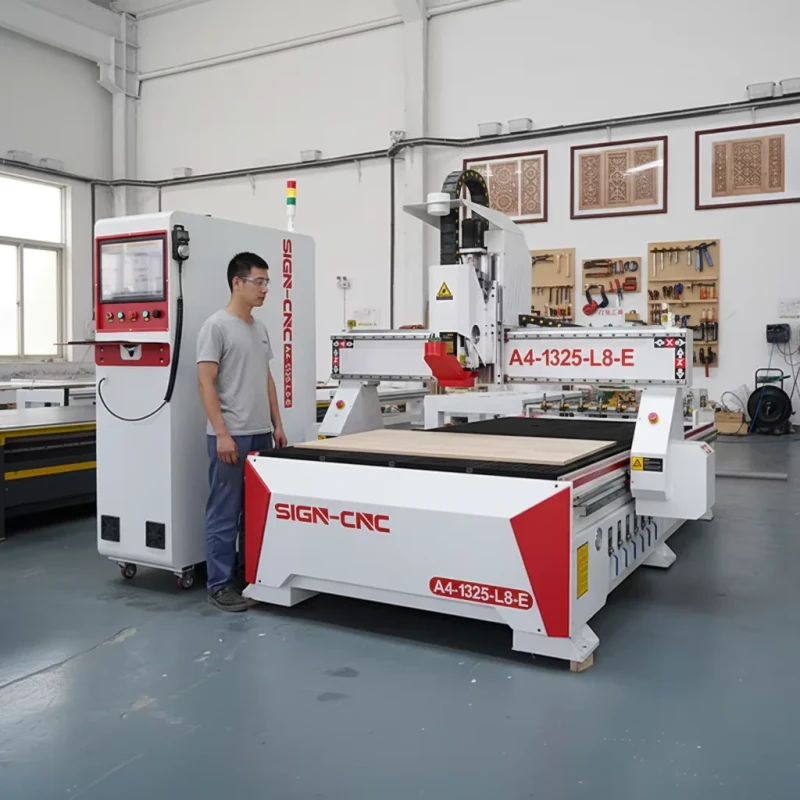

SIGN CNC Heavy Duty CNC Router with Pressure Roller & Vacuum Table 1300x2500mm 12 Tool ATC 9kW ISO30 ER32 Syntec FC63CA
SIGN CNC Heavy Duty CNC Router with Pressure Roller & Vacuum Table 1300x2500mm 12 Tool ATC 9kW ISO30 ER32 Syntec FC63CA
| number of axes | 3 | voltage | 380 V |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Automatic | Accessory Type | Dust collection |
| core components | Bearing, Motor, Pump, Gear | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1300 | positioning accuracy (mm) | 0.05 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.05 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 1300*250*280 | Spindle Power | 9.0KW ATC air-cooled ISO30-ER32 spindle |
| Spindle Speed | 0-24000RPM | Inverter | 11KW high frequency inverter |
| Tool Magazine | Disc type 12 tools changer magazine | Table Surface | Vacuum table with T-slot and 7.5KW vacuum pump |
| Drive Motors | 1500W AC servo motor and driver (Z-axis motor with brake) | Software | Artcam with post processor |
| Reducer | Japan Shimpo planetary reducer | Control System | Syntec FC63CA Bus control system |
| Dust Collector | 3KW-380V comes with stand,brush and hose |
