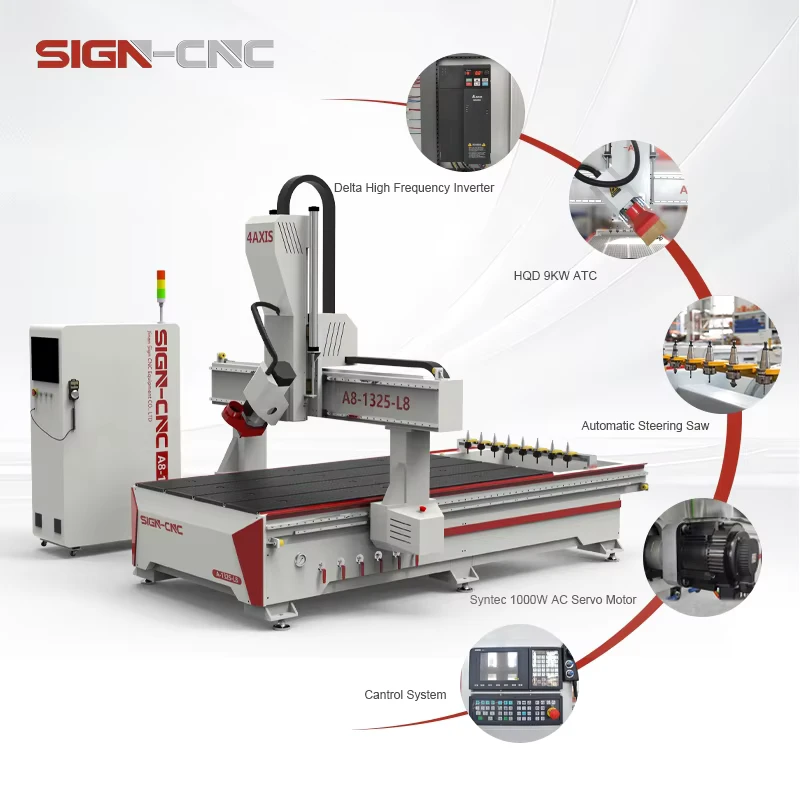

SIGN CNC 4 Axis Wood CNC ATC Router CNC Machine for Wood 3D Engraving Machine With Rotary

SIGN CNC 4 Axis Wood CNC ATC Router CNC Machine for Wood 3D Engraving Machine With Rotary
  • SIGN CNC 4 Axis Wood CNC ATC Router CNC Machine for Wood 3D Engraving Machine With Rotary

    • SIGN CNC 4 Axis Wood CNC ATC Router CNC Machine for Wood 3D Engraving Machine With Rotary

    Request a Quote
    number of axes4voltage380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalcore componentsBearing, Motor, Spindle
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1600
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)3.7kw(4.96hp)
    dimension(l*w*h)3000*2006*1550mm(118.11*78.98*61.02in)functioncutting and engraving
    working area1300*2500mmspindle powwerHQD 9.0KW ATC air-cooled spindle swing 180°
    InverterDelta11KW inverterdriverSyntec 1000W AC servo motor and driver
    control systemSyntec 60WE bus control systemRotary80-320mm
    After-sales Service ProvidedOverseas third-party support availableSoftwareArtcam with post processor
    Tool MagazineLinear type 8 tools changer magazine
