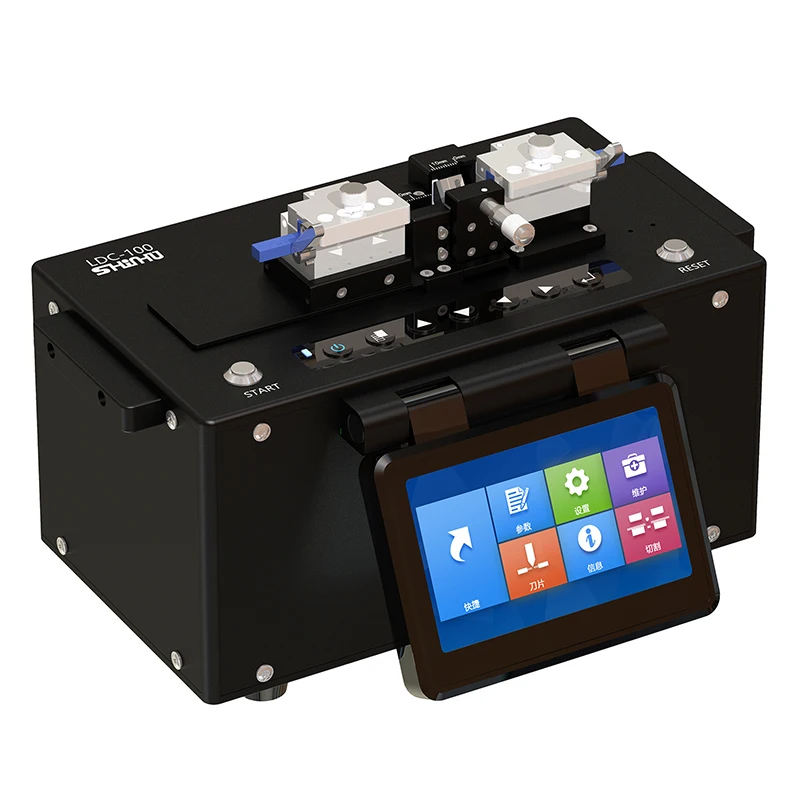

Shinho LDC 100 High Precision Laser Fiber Cleaver Fusion Splicer 80 Um 1.25 mm Cladding Fibers Large Diameter New High Power
Shinho LDC 100 High Precision Laser Fiber Cleaver Fusion Splicer 80 Um 1.25 mm Cladding Fibers Large Diameter New High Power
| Type | Fiber fusion splicer | Connector Type | USB |
| Power Source | AC 220 V | Use | Optical Communication |
| Network | None | Warranty Time | 1 years |
| Port | HDY13505N65S-A | Power - Minimum Receivable | 60W |
| Frequency Range | 50/60Hz | Product Name | 125um 250um 400um LDF Large Diameter Fiber Cable Fusion Splicer |
| Applicable Fibers | SM/MM/DS/NZDS/EDF/DCF/LDF | Cladding Diameter | 80~1250 μm |
| Coating Diameter | 160~3000 μm | Typical Splicing Time | 30 Seconds (Tested of cladding diameter 400 μm cladding) |
| Typical Heating Time | Typical 30 seconds , could customize | Return Loss | >60dB |
| Electrode life | 125μm: 3000 arcs; 250μm: 1000 arcs | Fiber Magnification | 100~200X adjustable |
| Dimension/Weight | 270mm(L)x155mm(W)x165mm(H) / 4.37kg |
