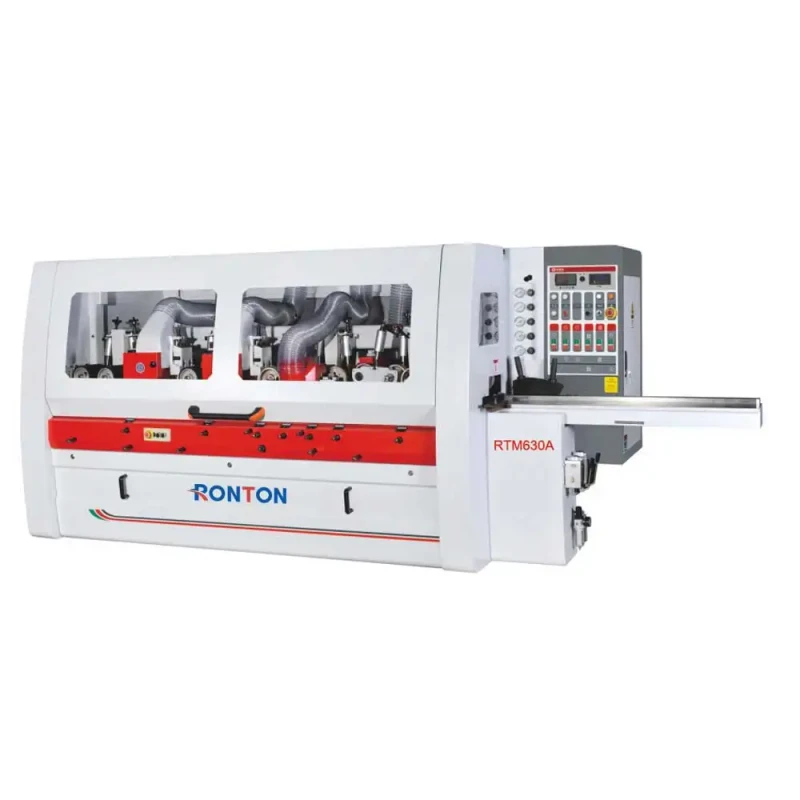

RTM630A Four Sided Moulder Six Spindle Wood Planer Thicknesser Machine for Carpentry Planer

RTM630A Four Sided Moulder Six Spindle Wood Planer Thicknesser Machine for Carpentry Planer
  • RTM630A Four Sided Moulder Six Spindle Wood Planer Thicknesser Machine for Carpentry Planer

    • RTM630A Four Sided Moulder Six Spindle Wood Planer Thicknesser Machine for Carpentry Planer

    Request a Quote
    typeFour Side Mouldermax.planing width(mm)300
    voltage380v/220v/ custompower (kw)90
    Cutter TypeSpiralcore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
    sliding table equippedNomachinery test reportProvided
    Number Of Blades288video outgoing-inspectionProvided
    key selling pointsEasy To Operatemax.planing depth(mm)200
    weight (kg)5500dimension(l*w*h)4760*1929*1835mm(187.40*75.94*72.24in)
    Maximum Cutting(mm) Depth8Working width25-300mm
    Working thickness8-200mmWorking table length2000mm
    Main shaft diameter40mmWorking air pressure0.6Mpa
    Mains shaft speed6000 rpm
