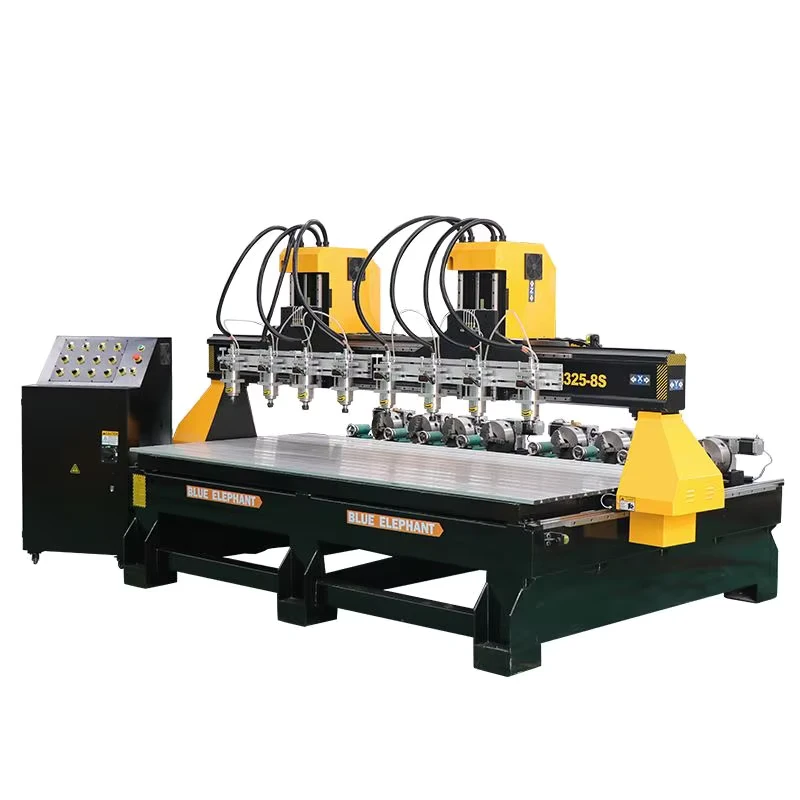

Rotary Table Wood Carving Machine Engraver Multi Head 3D CNC Router Machine Woodworking

Rotary Table Wood Carving Machine Engraver Multi Head 3D CNC Router Machine Woodworking
  • Rotary Table Wood Carving Machine Engraver Multi Head 3D CNC Router Machine Woodworking

    • Rotary Table Wood Carving Machine Engraver Multi Head 3D CNC Router Machine Woodworking

    Request a Quote
    Working Table Size(mm)1300×2500voltageAC380V/50HZ or optional
    machine typeCNC RouterNo. of SpindlesMulti
    key selling pointsMultifunctionalcore componentsMotor, Pump
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1800
    range of spindle speed(r.p.m)1 - 18000 rpmpositioning accuracy (mm)0.02 mm(0in)
    travel (x axis)(mm)1300 mm(51.18in)travel (y axis)(mm)2500 mm(98.43in)
    repeatability (x/y/z) (mm)0.02 mm(0in)Spindle Motor Power (kw)17.6kw(23.60hp)
    dimension(l*w*h)3200*2140*1850mm(125.98*84.25*72.83in)Applicationstair handrail, wood relief, wood sculpture, furniture legs,
    Auxiliary equipmentsvacuum pump and dust collecting deviceMotor and driverFL118 stepper motors and leadshine 860h drive
    Inverter8 sets 2.2kw Fuling inverterWorking area1300*2500*300mm
    Working tableDetachable Removable Vacuum Adsorption Working TableSoftware and controlArtcam Software; DSP B18
    Spindle2.2kw*8 sets water cooled spindle of ChangshengSize of rotary attachments200mm dia., 8 sets
    TransmissionABBA linear square rail; TBI ball screw, helical rackAfter-sales Service ProvidedOnline support
    After Warranty ServiceVideo technical support, Online support, Spare parts, Field maintenance and repair serviceMarketing TypeNew Product 2020
    CertificationCE
