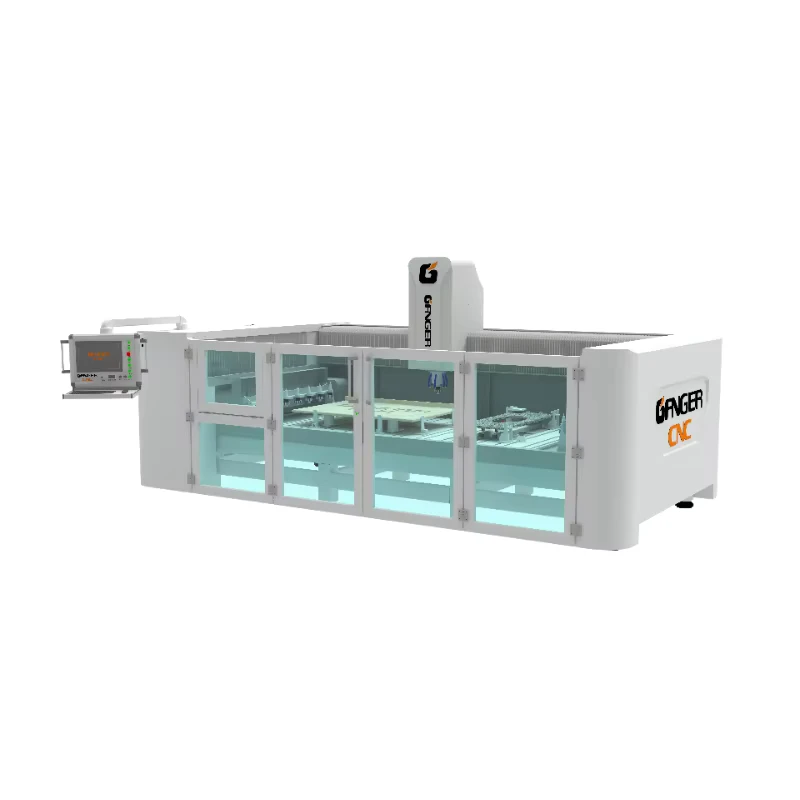

Quartz CNC Machining Center Gsy-3015plus Cabinet Countertops Bathroom Countertop for Marble

Quartz CNC Machining Center Gsy-3015plus Cabinet Countertops Bathroom Countertop for Marble
  • Quartz CNC Machining Center Gsy-3015plus Cabinet Countertops Bathroom Countertop for Marble

    • Quartz CNC Machining Center Gsy-3015plus Cabinet Countertops Bathroom Countertop for Marble

    Request a Quote
    TypeStone Cutting MachineUseSTONE
    Voltage380 VCutting thickness (max)50 mm(1.97in)
    Max Cutting Length3000mm(118.11in)Power(W)Spindle 7.5kw
    Core ComponentsMotor, Bearing, OtherKey Selling PointsEasy To Operate
    Machinery Test ReportProvidedVideo outgoing-inspectionProvided
    Weight3500 kg(7716.18lb)Dimension(L*W*H)3000*1500*430mm(118.11*59.06*16.93in)
    Product nameStone Countertop Cutting Polishing Engarving MachineModelGSY-3015PLUS
    X/Y/Z Working Size3000*1500*430mmX/Y/Z Axis transmissionX/Y Axis helical Gear and rack,Z Axis Ball screw
    Spindle powerATC spindle 7.5KW(optional)Max spindle speed15000rpm
    ATC type and capacityLinear ATC, 12 toolsDriver motorServo
    Control systemGANGER Control systemGross weight3500KGS
