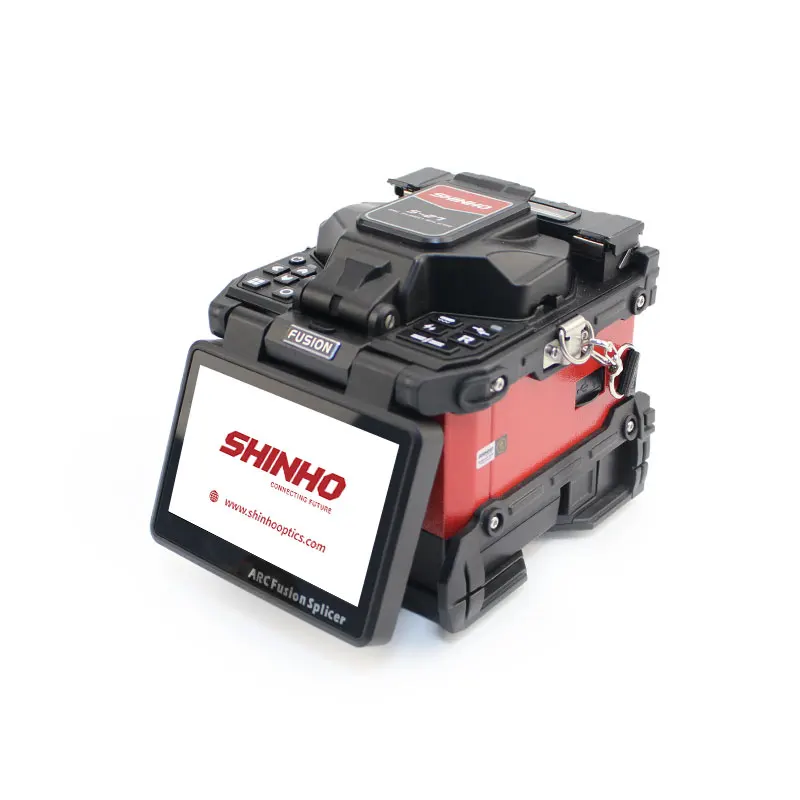

Professional S 27 Large Diameter Fiber Splicer PMA High Power Fiber Splicing

Professional S 27 Large Diameter Fiber Splicer PMA High Power Fiber Splicing
  • Professional S 27 Large Diameter Fiber Splicer PMA High Power Fiber Splicing

    • Professional S 27 Large Diameter Fiber Splicer PMA High Power Fiber Splicing

    Request a Quote
    TypeLaser ComponentUseOptical Communication
    NetworkNoneWarranty Time3 years
    Product NameS-27 LDF Core Alignment Large Diameter Fiber Fusion SplicerApplicable FibersSM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
    Cladding Diameter125~400 μmCoating Diameter250~800 μm
    Typical Splicing Time14 SecondsTube -Heating Time24 Seconds for 60mm and 40mm Shrinkable Sleeves
    Return Loss>60dBElectrode life125μm: 3000 arcs; 250μm: 1000 arcs
    Fiber Magnification120X(X or Y view); 60X(X and Y view)Dimension/Weight155mm(L)*144mm(W)*155mm(H) / 1.8kg
