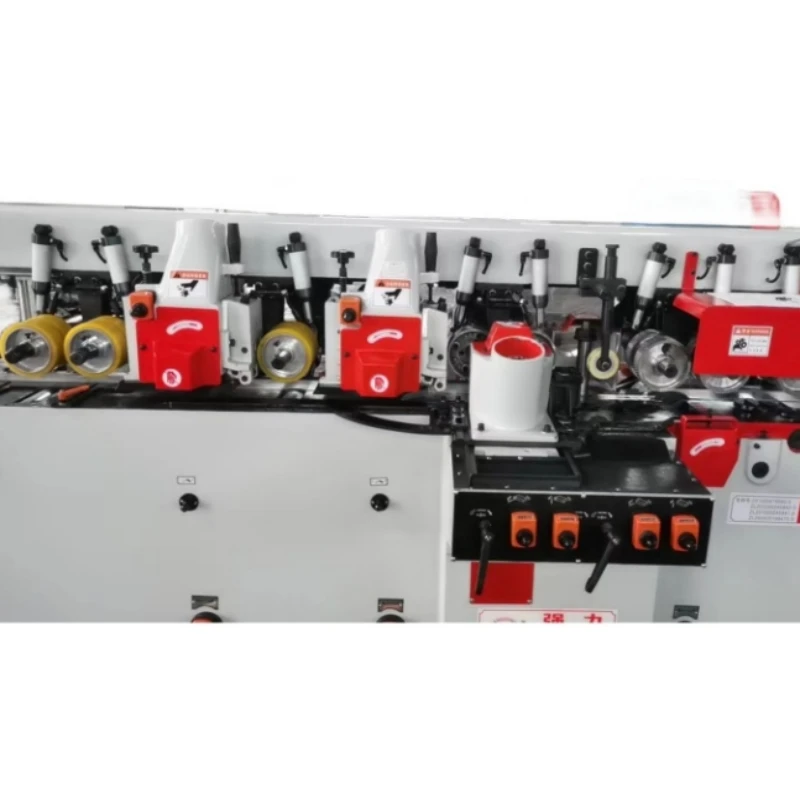

Precision Engineered 4 Side Wood Moulder Industrial Grade Heavy Duty Woodworking Planer for 180mm Decorative Molding
Precision Engineered 4 Side Wood Moulder Industrial Grade Heavy Duty Woodworking Planer for 180mm Decorative Molding
| type | Four Side Moulder | max.planing width(mm) | 180 |
| voltage | 380v/50hz/3 Phase(or option other) | power (kw) | 24.45KW(32.79hp) |
| Feed Rates | 30 m/min(98.43ft/min) | core components | Motor, PLC, Bearing |
| sliding table equipped | No | machinery test report | Provided |
| Number Of Blades | 5 | video outgoing-inspection | Provided |
| key selling points | Easy To Operate | max.planing depth(mm) | 150 |
| weight (kg) | 2300 | dimension(l*w*h) | 3500*1500*1500cm(1377.95*590.55*590.55in) |
| Maximum Cutting(mm) Depth | 150 | Working width | 20-180mm |
| Working thickness | 10-150mm | FEEDING SPEED | 0-30m/min |
| Spindle speed | 6000rpm | Main spindle diameter | 40mm |
| Function | Planing Wood Surface Smooth | Use | woodworking |
| Number of Blade | 5 | Applicable Industries | Building Material Shops, Machinery Repair Shops |
