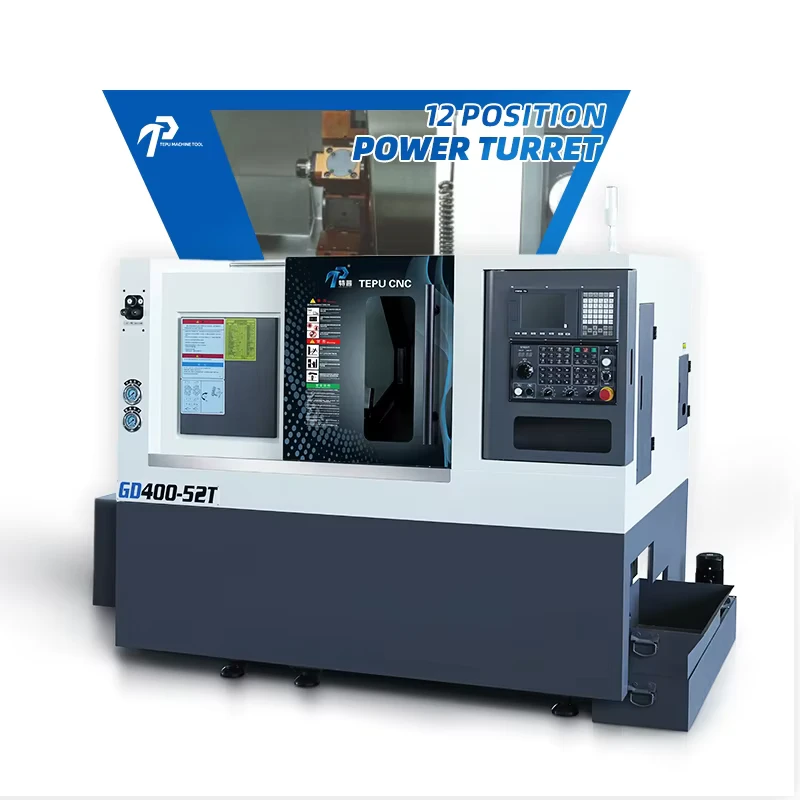

Precision Automatic Horizontal CNC Turning Center Hydraulic Chuck Slant Bed Lathe with Servo Tooling
Precision Automatic Horizontal CNC Turning Center Hydraulic Chuck Slant Bed Lathe with Servo Tooling
| type | Slant Bed CNC Turret Lathe | max. length of workpiece (mm) | 400 |
| positioning accuracy (mm) | ±0.01 | repeatability (x/y/z) (mm) | ±0.005 |
| number of axes | 3 | cnc control system | 7TA |
| no. of spindles | Single | tool post stations | 10/12 |
| machining capacity | Medium Duty | machinery test report | Provided |
| video outgoing-inspection | Provided | max. weight of workpiece(kg) | N/A |
| travel (x axis)(mm) | 200 | travel (z axis)(mm) | 400 |
| dimension(l*w*h) | 2300*1600*1800 mm(90.55*62.99*70.87in) | weight | 3000 |
| Product name | High and Low Rail Slant Bed Turret CNC Machine Tool | Hollow Hydraulic Chuck | 8 inches |
| Hollow Oil Cylinder | 852 | Spindle | A2-6 |
| Servo Main Motor | 11kw | Maximum spindle speed | 3500 |
| Cutter square specification | 25*25 mm | Fast moving speed of X-axis/Z-axis | 25000/25000 mm/min |
| Cooling water pump power | 550W | Net weight (approx.) | 3000kg |
