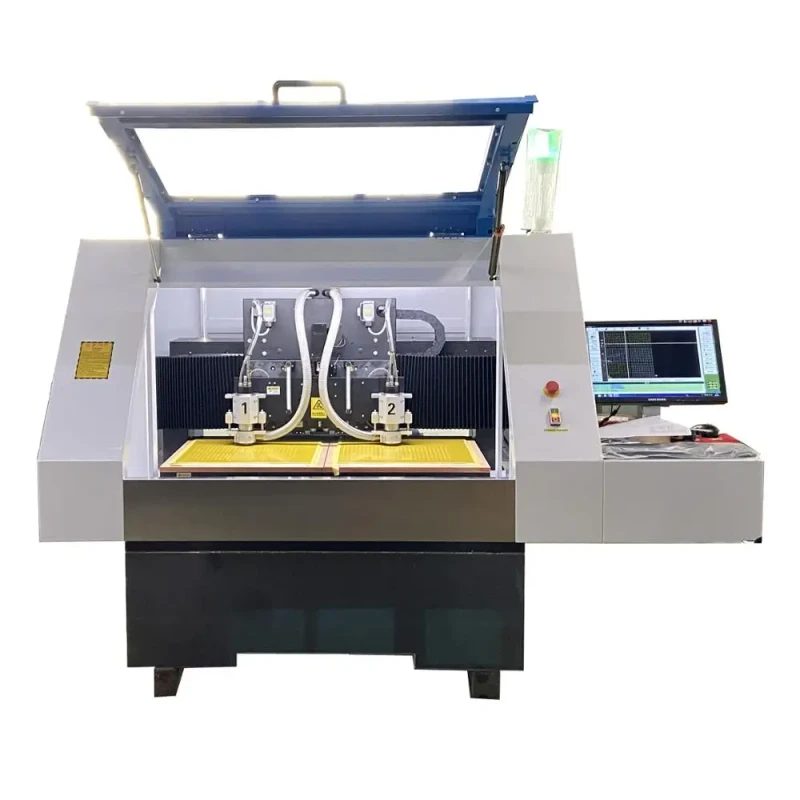

Pcb Cnc Manual Tool Change Drilling and Milling Carving Machine for Mpcb Fr4 Copper Plate Led Lighting
Pcb Cnc Manual Tool Change Drilling and Milling Carving Machine for Mpcb Fr4 Copper Plate Led Lighting
| type | Universal | number of axes | 2 |
| voltage | 220 V | table travel (x) (mm) | 2500 |
| table travel (y) (mm) | 2500 | table travel (z) (mm) | 3000 |
| positioning accuracy | ±0.01 | repeatability (x/y/z) (mm) | ±0.01 |
| spindle taper | Other | cnc control system | ChiKin |
| machining capacity | Heavy Duty | no. of spindles | 2 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High Productivity | max. table load(kg) | 1000 |
| range of spindle speed | 50000 - 60000 | weight | 2200 |
| NC System | ChiKin CNC Controller | Another Rail & Ball screw | TaiWan |
| Spindle | 60000rpm | Application | Aluminum PCB / FR4 / Acrylic |
| Transmission | Ball Screw | Machine Type | PCB Drilling / Routing |
| Rail & Ballscrew Type | Taiwan | Material | Jinanqing Marble |
| Business Type | Manufacturer | After-sales Service Provided | Video technical support |
