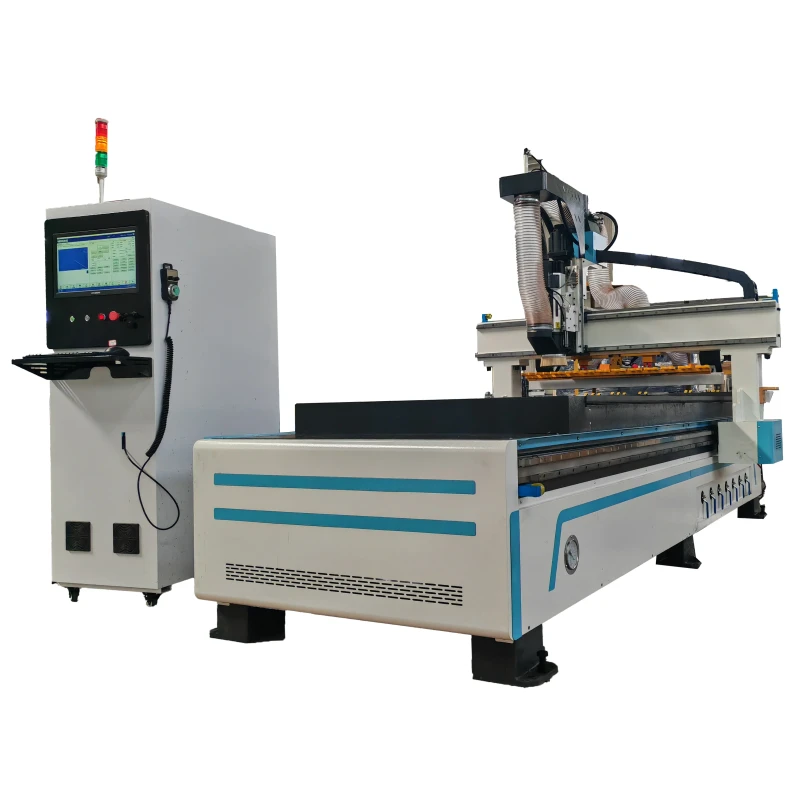

Panel Furniture Industry Used CNC Wood Carving Router Machine

Panel Furniture Industry Used CNC Wood Carving Router Machine
  • Panel Furniture Industry Used CNC Wood Carving Router Machine

    • Panel Furniture Industry Used CNC Wood Carving Router Machine

    Request a Quote
    Working Table Size(mm)1300X2800number of axes1
    voltage380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsLong Service Life
    core componentsBearing, Motor, Pump, Gearcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)18weight (kg)2000
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2800
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)9
    dimension(l*w*h)2.285*4.1*2.5m(7.50*13.45*8.20ft)Bed structureWelded thick steel bed structure
    Working table surfaceVacuum adsorption tableControl systemWeihong control system
    Motor and driverservo motor and driverSpindle9kw air-cooling ATC Spindle
    TransmissionTaiwan TBI Ball Screw and high precision helical rackWorking area1300x2800x200mm
    ReducerSHIMPO reducerInverter11KW Delixi Inverter
