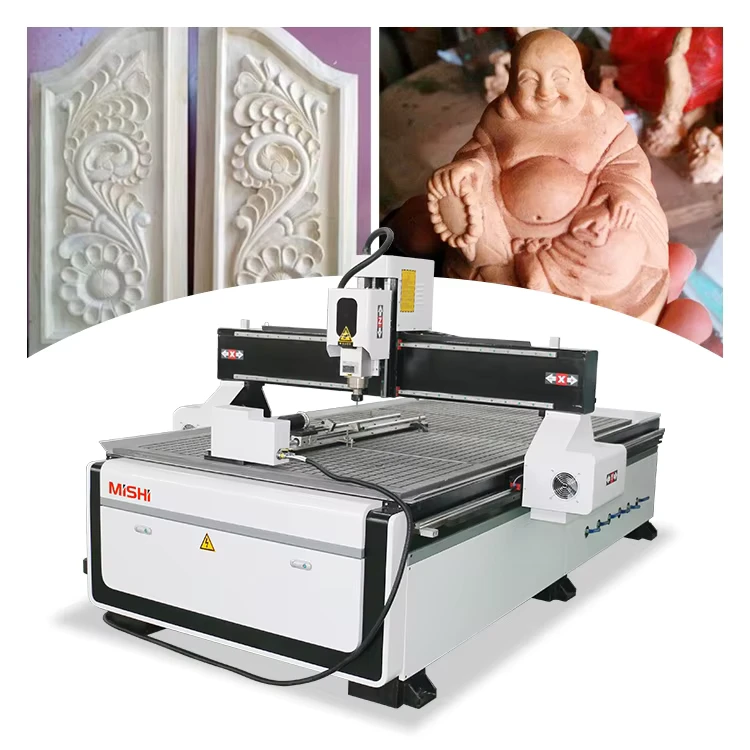

New Design 4 Axis Wood CNC Router Vacuum Table with Rotating Device for Woodworking 3D CNC Wood Carving Machine

New Design 4 Axis Wood CNC Router Vacuum Table with Rotating Device for Woodworking 3D CNC Wood Carving Machine
  • New Design 4 Axis Wood CNC Router Vacuum Table with Rotating Device for Woodworking 3D CNC Wood Carving Machine

    • New Design 4 Axis Wood CNC Router Vacuum Table with Rotating Device for Woodworking 3D CNC Wood Carving Machine

    Request a Quote
    number of axes4voltage220V/380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsMultifunctionalAccessory TypeDust collection
    core componentsMotor, Spindle, System, Drivercnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1000range of spindle speed(r.p.m)1 - 24000 rpm
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)2500repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)6kw(8.05hp)dimension(l*w*h)3000*2150*1800mm(118.11*84.65*70.87in)
    Keywords1325 Wood 3d Cnc RouterApplicationWood Acrylic PVC Engraving Cutting
    SoftwareUcancam / ArtCam/TYPE3Guide railTaiwan Hiwin Square Guide Rail
    Product name4 Axis Cnc RouterControl systemNc-studio/Mach3/DSP Control System
    Function3d 4axis Cnc Router MachineTransmissionXY-axis:rack Z-axis:ball Screw
    Table SurfaceVacuum Combined T-slot TableTable structureHeavy Duty Welded Frame
