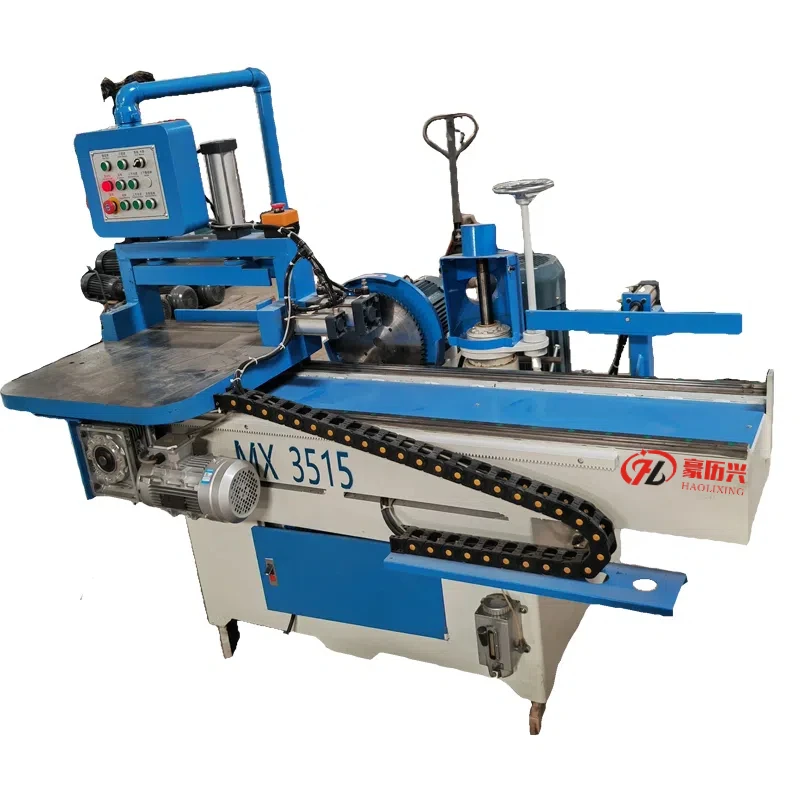

MX3515 Finger Jointing Machine Finger Joint Tenonning Machine Mini Finger Joints Machine for Bee Hive
MX3515 Finger Jointing Machine Finger Joint Tenonning Machine Mini Finger Joints Machine for Bee Hive
| type | Thicknesser | max.planing width(mm) | 360mm(14.17in) |
| power (kw) | 9.7 | Cutter Type | Spiral |
| core components | Engine, Motor | sliding table equipped | Yes |
| machinery test report | Provided | Number Of Blades | 2 |
| video outgoing-inspection | Provided | key selling points | Easy To Operate |
| max.planing depth(mm) | 120 mm(4.72in) | weight (kg) | 590 KG(1300.73lb) |
| dimension(l*w*h) | 1900 x 1500 x 1500mm(74.80x59.06x59.06in) | Model | MX3515 |
| Max working width | 360mm | Max working thickness | 120mm |
| Cutter diameter | 160mm | Max dia of saw blade | 305mm |
| Spindle diameter | 35/40/50mm | Spindle rotation | 6500r/min |
| Saw blade motor power | 2.2kw | Spindle motor power | 7.5kw |
| Total power | 9.7kw |
