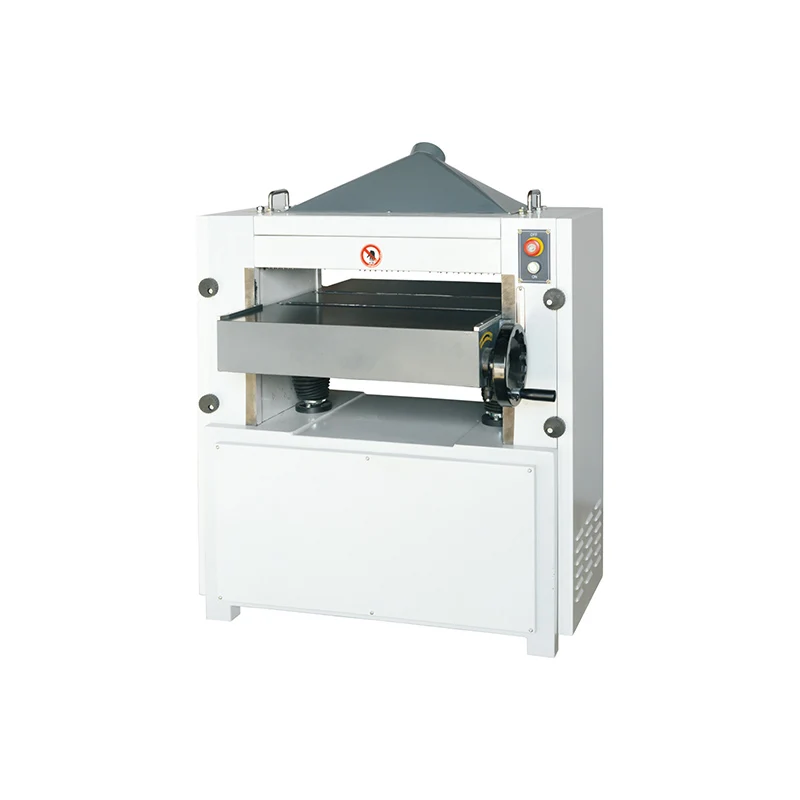

Multipurpose Woodworking Surface Desktop Helical Cutter Planer Thicknesser MB105H Motor 4kW 500mm
Multipurpose Woodworking Surface Desktop Helical Cutter Planer Thicknesser MB105H Motor 4kW 500mm
| type | Thicknesser | max.planing width(mm) | 500 |
| voltage | - | power (kw) | 4 kW(5.36hp) |
| Feed Rates | 10 m/min(32.81ft/min), 8m/min(26.25ft/min), 12m/min(39.37ft/min) | core components | Motor |
| sliding table equipped | Yes | machinery test report | Provided |
| Number Of Blades | 4 | video outgoing-inspection | Provided |
| key selling points | Easy To Operate | max.planing depth(mm) | 5 |
| weight (kg) | 476 | dimension(l*w*h) | 950* 830 *1230mm(37.40*32.68*48.43in) |
| Product Name | Single-Side Thicknesser | Model | MB105H |
| Max. planing width | 500mm | Max. planing thickness | 200mm |
| Min. planing thickness | 8mm | Min. planing length | 220mm |
| Spindle speed | 4800r/min | Spindle dia. | 105mm |
| Dast outlet dia. | 100mm | Net.weight | 476kg |
