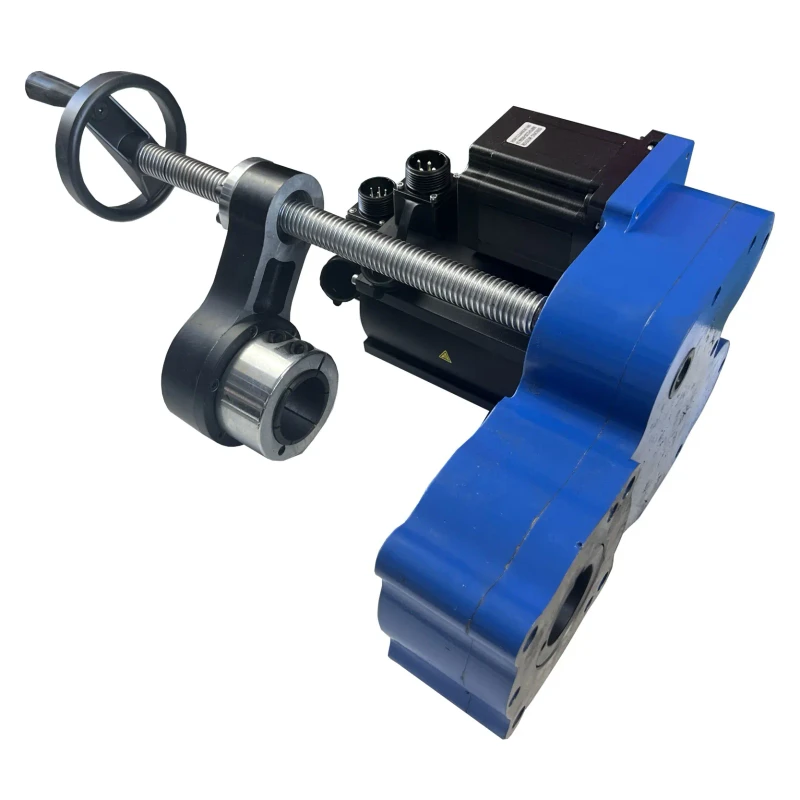

Multifunctional Electric Portable Line Boring and Bore Welding Machine Boring Machine
Multifunctional Electric Portable Line Boring and Bore Welding Machine Boring Machine
| type | VERTICAL | cnc or not | CNC |
| table size (mm) | Other | spindle motor power(kw) | 3.8 |
| number of axes | 2 | voltage | 220V/380V |
| no. of spindles | 4 | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | PLC, Motor, Pressure Vessel, Pump |
| key selling points | Multifunctional | table travel (x) (mm) | 1500 |
| table travel (y) (mm) | 1500 | table travel (z) (mm) | 1500 |
| range of spindle speed(r.p.m) | 350 | weight (t) | 0.13 |
| max. table load(kg) | 100 | travel (w-axis) (mm) | 1500 |
| positioning accuracy (x axis) mm | 0 | positioning accuracy (y axis) mm | 0 |
| positioning accuracy (z axis) mm | 0 | dimension(l*w*h) | 90*43*22cm 152*23*24cm |
| Model | HL-350 | Functions | Boring + welding |
| Max speed | 350r/min | Boring Bar OD | 35/50mm |
| Max welding OD | 150mm/350mm | Max boring OD | 150mm/350mm |
| Power | 3.8kw 220V/380V | Boring bar length | 1500mm |
