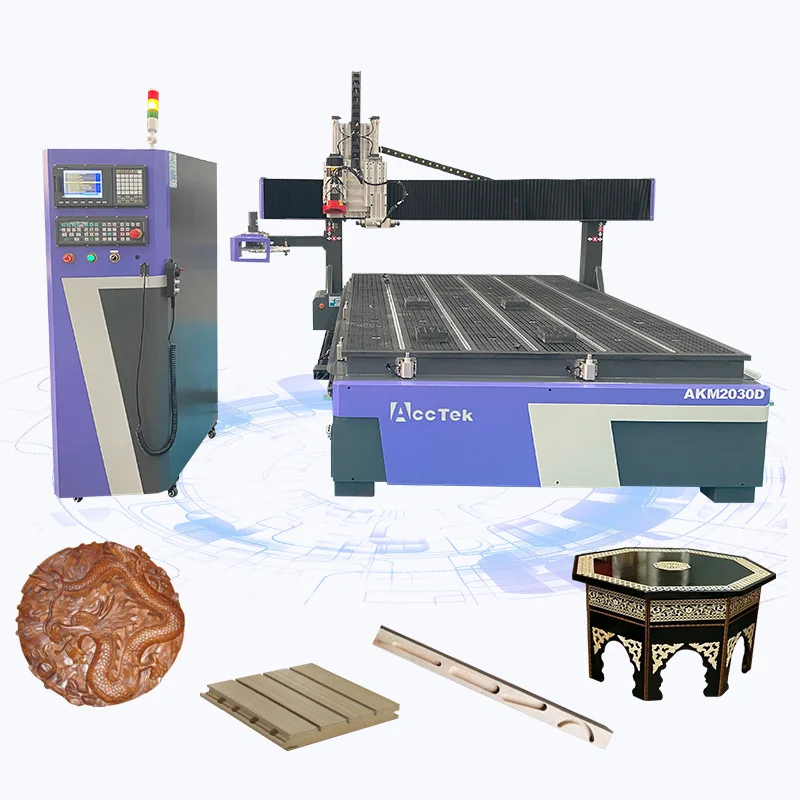

Multifunction Woodworking Machine Carousel Atc Cnc Router Machine With Horizontal Spindle for Side Engraving and Drlling

Multifunction Woodworking Machine Carousel Atc Cnc Router Machine With Horizontal Spindle for Side Engraving and Drlling
  • Multifunction Woodworking Machine Carousel Atc Cnc Router Machine With Horizontal Spindle for Side Engraving and Drlling

    • Multifunction Woodworking Machine Carousel Atc Cnc Router Machine With Horizontal Spindle for Side Engraving and Drlling

    Request a Quote
    number of axes3voltageAC 220V/380V, 3 phases
    machine typeATC CNC RouterNo. of Spindles2
    key selling pointsMultifunctionalAccessory TypeStandard
    core componentsSpindlecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)1600range of spindle speed(r.p.m)0 - 18000
    positioning accuracy (mm)0.1travel (x axis)(mm)2000
    travel (y axis)(mm)3000repeatability (x/y/z) (mm)0.05
    Spindle Motor Power (kw)9.0+3.5dimension(l*w*h)2000*3000*250
    Product nameAtc Cnc Router MachineSpindleHQD air-cooled type atc spindle 9.0kw
    Control systemSyntec 60W-EMotor and driverDelta/Yaskawa servo motor and driver
    InverterFuling/DeltaX, Y structureRack and pinion, gear drive, Taiwan 25mm square guide rails
    Z structureTaiwan TBI ball screw, Taiwan 25mm square guide railsWorktable typeVacuum with t-slot
    CommandG code (HPGL, U00, mmg, plt)Lubrication systemAuto oil lubrication
