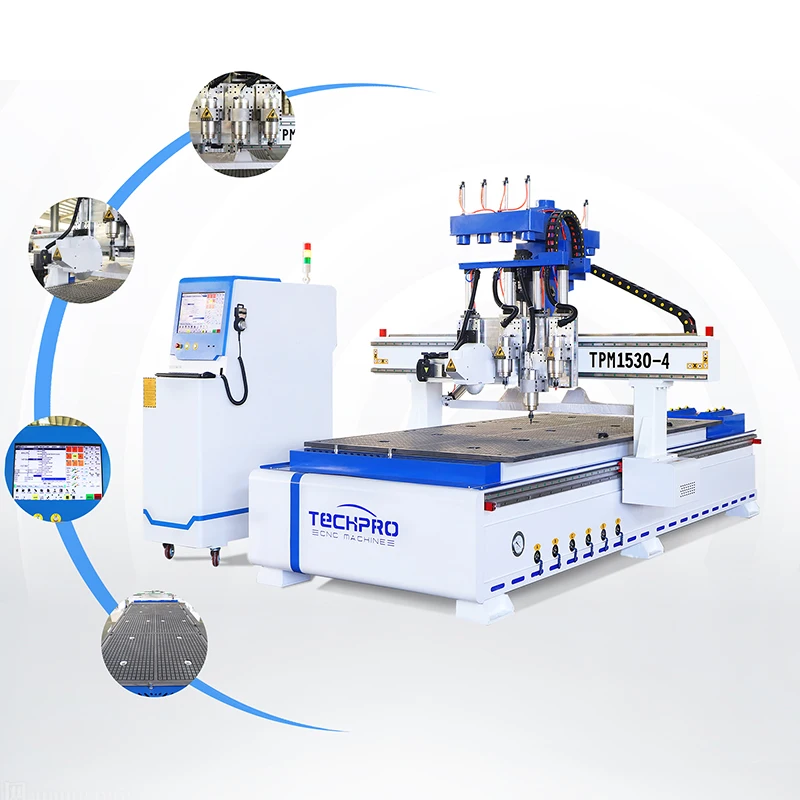

Multifunction Aluminum Composite Panel Cutting 2030 CNC Router Machine for Woodworking Metal Aluminum ACM ACP Acrylic PVC MDF
Multifunction Aluminum Composite Panel Cutting 2030 CNC Router Machine for Woodworking Metal Aluminum ACM ACP Acrylic PVC MDF
| number of axes | 3 | voltage | 3 Phase 380V |
| machine type | CNC Router | No. of Spindles | Multi |
| key selling points | Multifunctional | core components | Bearing, Motor, Gear, PLC, Engine, Gearbox |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 2500 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.01 |
| travel (x axis)(mm) | 1500 | travel (y axis)(mm) | 3000 |
| repeatability (x/y/z) (mm) | 0.01 | Spindle Motor Power (kw) | 4.5 |
| dimension(l*w*h) | 1500*3000*300mm(59.06*118.11*11.81in) | Product name | Multi Process CNC Router TPM1530-4 |
| Working area | 1500*3000*300mm(according to your needs) | Spindle power | 3.2kw Water Cooling Spindle |
| Saw Blade | 5.5 kw Saw Blade Head | Inverter | Fuling Inverter |
| Control system | Taiwan LNC / Syntec | Motor and driver | Leadshine / Yaskawa servo motor and driver |
| Table type | T-slot + vacuum adsorption table | Guide rail | Taiwan Hiwin Square Guide Rail |
| Transmission | X,Y axis: YYC gear rack,Z axis: Taiwan TBI ball screw |
