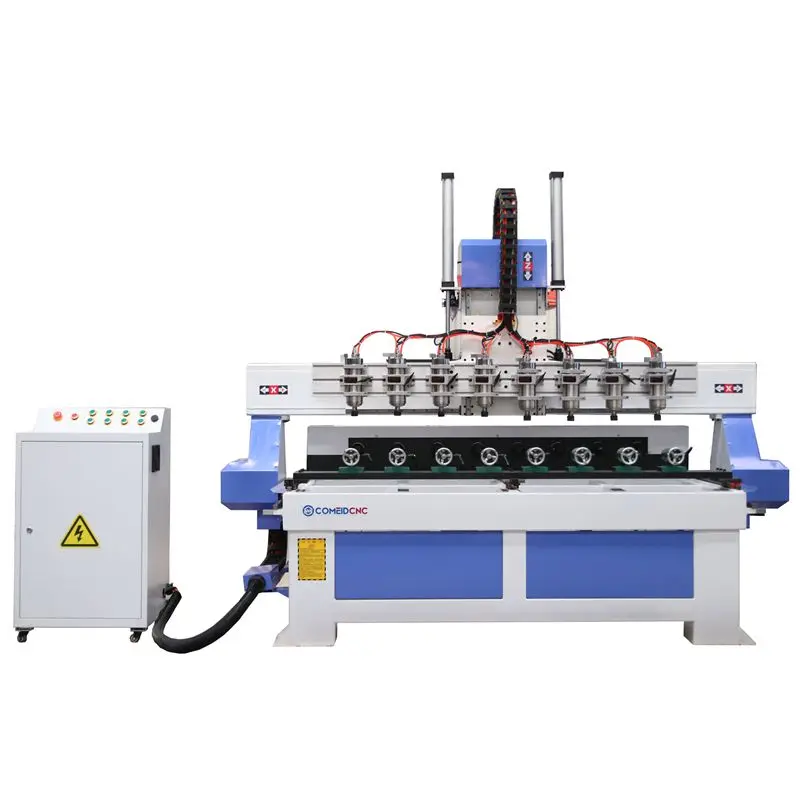

Multi Spindle CNC 4 Axis Wood with Rotary for 3D Art Handicraft

Multi Spindle CNC 4 Axis Wood with Rotary for 3D Art Handicraft
  • Multi Spindle CNC 4 Axis Wood with Rotary for 3D Art Handicraft

    • Multi Spindle CNC 4 Axis Wood with Rotary for 3D Art Handicraft

    Request a Quote
    number of axes4voltage220V/380V
    machine typeCNC RouterNo. of SpindlesMulti
    key selling pointsCompetitive Pricecore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1200
    range of spindle speed(r.p.m)6000 - 24000 rpmpositioning accuracy (mm)0.05
    travel (x axis)(mm)1600travel (y axis)(mm)1200
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)2.2
    dimension(l*w*h)1500*2400*1800mm(59.06*94.49*70.87in)After-sales Service ProvidedEngineers available to service machinery overseas
    Applicationwood acrylic PVC engraving cuttingSoftwareARTCAM,Type3, Ucancam,Mach3
    StructureIron casting table stable strong tableSpindleWind Cooling Spindle 2.2kw
    TransmissionLinear rail and ball screwControl systemDSP Handle/ Nc studio
    Working areaRotary 200*1000mmKey wordmulti spindle cnc 4 axis wood
