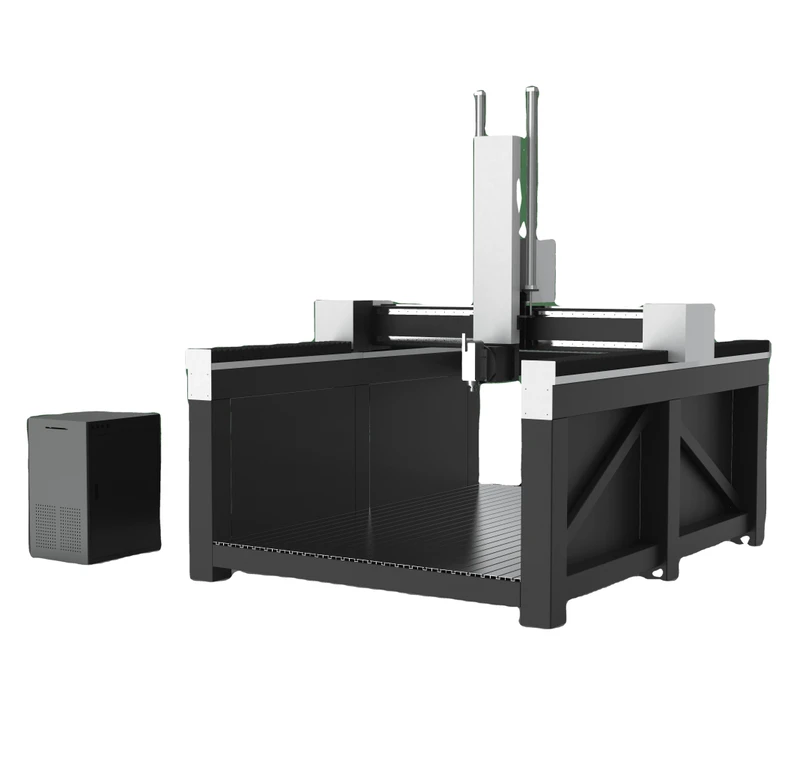

Multi Rotate CNC Router Foam Wood Sculpture Engraving Carving Woodworking Machine with Swing Spindle DSP Controller
Multi Rotate CNC Router Foam Wood Sculpture Engraving Carving Woodworking Machine with Swing Spindle DSP Controller
| Working Table Size(mm) | 1525*3000*900mm(60.04*118.11*35.43in) | number of axes | 3 |
| voltage | AC | machine type | CNC Router |
| No. of Spindles | ATC | key selling points | Multifunctional |
| core components | Motor, Spindle, Control system, Reducer, Inverter, Ball screw | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 1500 | range of spindle speed(r.p.m) | 1000 - 18000 rpm |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 1525 mm(60.04in) |
| travel (y axis)(mm) | 3000 mm(118.11in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 9kw(12.07hp) | Type | ATC |
| Working area | 1525*3000*900mm | Power of spindle | 9kw ISO30 ATC aircooled spindle |
| Inverter | Fuling inverter | Controller | 3 axis Masso |
| Reducer | Japan shimpo reducer | Guide rails | Taiwan 30 HIWIN square guide rails |
| Rack pinion | 1.5mol high precision rack | Electrical | ABB electrial |
| Working table | 2mm T-slot stable |
