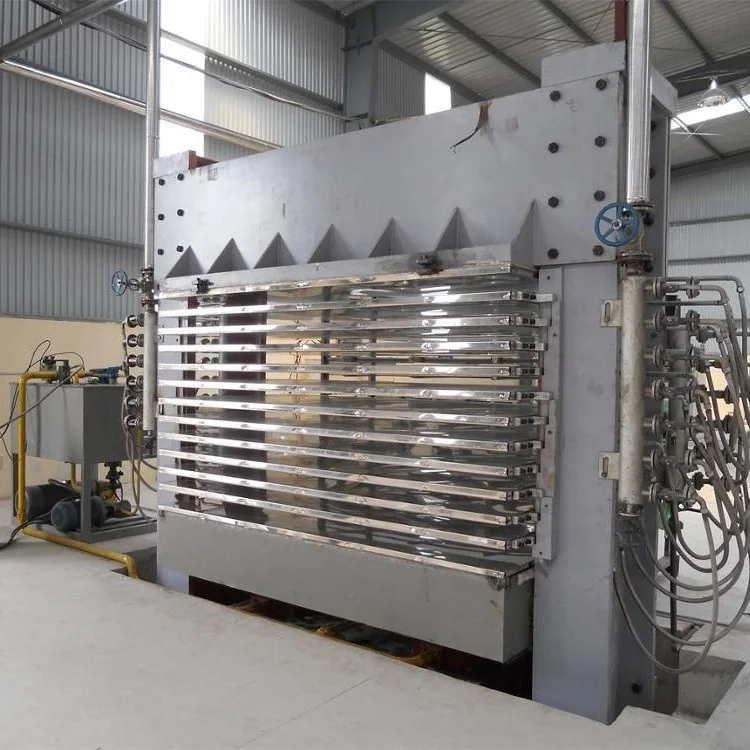

Multi Layers Laminating Laminate Wood MDF Plywood Veneer Flush Door Hydraulic Thermal Hot Press Machine

Multi Layers Laminating Laminate Wood MDF Plywood Veneer Flush Door Hydraulic Thermal Hot Press Machine
  • Multi Layers Laminating Laminate Wood MDF Plywood Veneer Flush Door Hydraulic Thermal Hot Press Machine

    • Multi Layers Laminating Laminate Wood MDF Plywood Veneer Flush Door Hydraulic Thermal Hot Press Machine

    Request a Quote
    typeHot Press MachineusagePlywood Production
    voltage220V/380V/440V/ customizedcore componentsBearing, Motor, Pump, Gear, PLC, Gearbox, Pressure Vessel, Engine
    video outgoing-inspectionProvidedkey selling pointsHigh-Accuracy
    power (kw)26weight (kg)38000
    dimension(l*w*h)3550*1370*4650mm(139.76*53.94*183.07in)Max pressure500 Tons
    Layers15Layers spacing70mm
    Number of hot press plate16 pcshot press plate size2700*1370*42mm
    Stroke1050mmWorking methodsFull automatic
    Total power7.5KW+18.5KWOverall dimension3550*1370*4650mm
    Weightabout 38 tons
