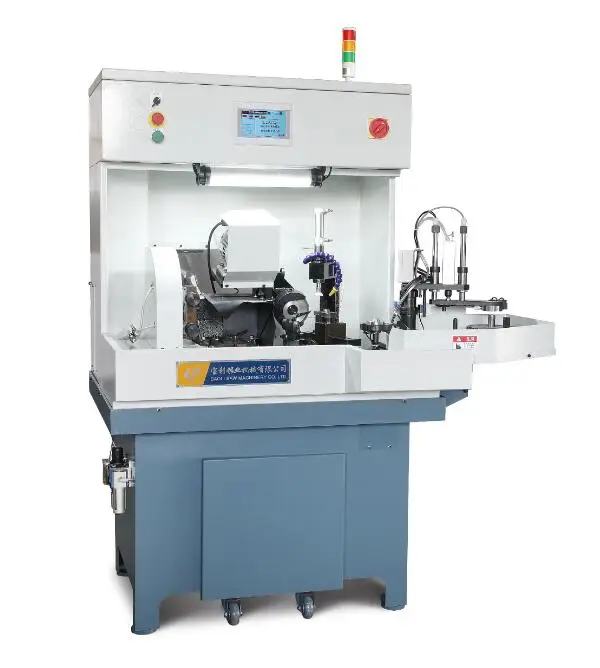

MLH-260J Full Automatic Back Angle CNC Digital Circular TCT Saw Blade Sharpening Grinder Machine with Robot Arm

MLH-260J Full Automatic Back Angle CNC Digital Circular TCT Saw Blade Sharpening Grinder Machine with Robot Arm
  • MLH-260J Full Automatic Back Angle CNC Digital Circular TCT Saw Blade Sharpening Grinder Machine with Robot Arm

    • MLH-260J Full Automatic Back Angle CNC Digital Circular TCT Saw Blade Sharpening Grinder Machine with Robot Arm

    Request a Quote
    typeUniversalvoltage380V/220V or Customized
    cnc or notNormalcore componentsPLC, manipulator
    key selling pointshigh efficiency, easy to operatemachinery test reportProvided
    video outgoing-inspectionProvidedpower (kw)2.5
    weight (kg)900wheel size(mm)100x20x6mm(3.94x0.79x0.24in)
    dimension(l*w*h)1500x1000x2030mm(59.06x39.37x79.92in)Grinding precision≤0.03 mm
    Grinding speed20 (T/Min.)Arbor size12-50 mm or customized
    Usagesaw blade grinding machineWorking air pressure≥0.5 MPA
    Diamond wheel grit220# 280#Tooth pitch5-65 mm
    Back angle0°-30°Grinding length0-25 mm
    Bevel angle±45°
