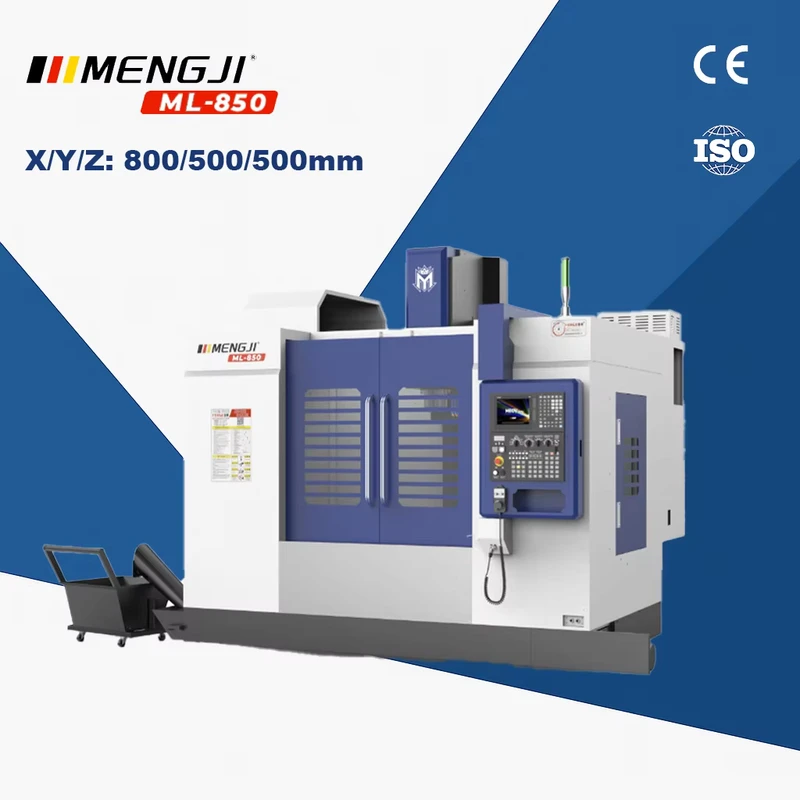

ML 850 Vertical Machining Center with High Rigidity Structure and Linear Rails for Precision CNC Milling and Metal Cutting
ML 850 Vertical Machining Center with High Rigidity Structure and Linear Rails for Precision CNC Milling and Metal Cutting
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 500 | table travel (z) (mm) | 500 |
| repeatability (x/y/z) (mm) | 0.003/0.003/0.003 | positioning accuracy | 0.008/0.008/0.008 |
| spindle taper | BT40-150 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | Siemens / Mitsubishi / GSK / FANUC |
| machining capacity | Heavy Duty | voltage | 380V-50HZ |
| table size | 1000*500 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Automatic, Competitive Price, High-Accuracy | weight (t) | 4.5 |
| max. table load(kg) | 450 | dimension(l*w*h) | 2560*2230*2035 |
| range of spindle speed | 1 - 8000 | rapid feed speed | 1 - 24000 |
