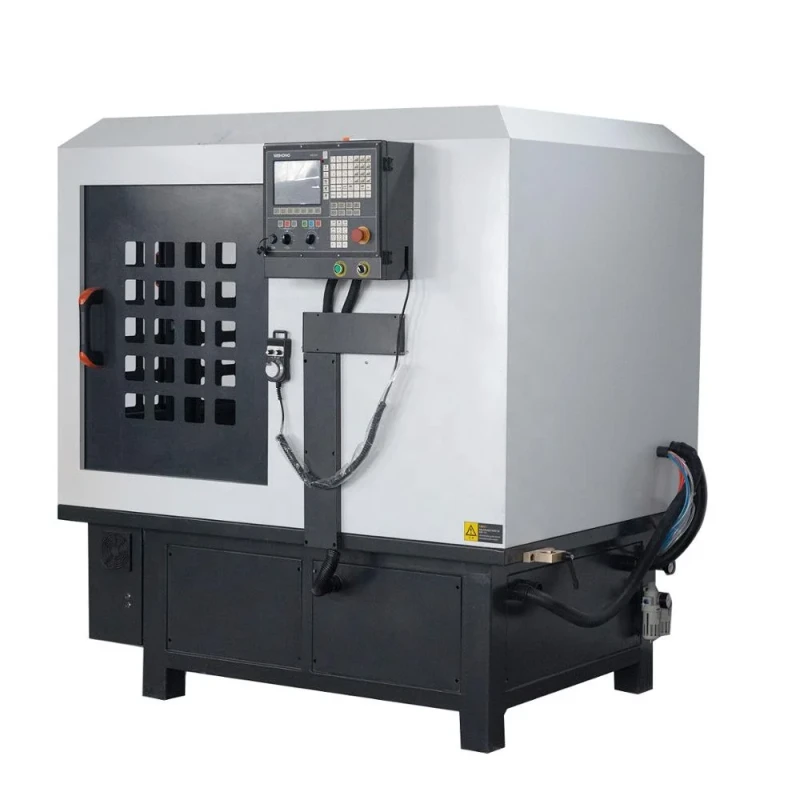

Mini Cnc Router Automatic Vertical Metal Mould 4 Axis Cnc Milling Machine
Mini Cnc Router Automatic Vertical Metal Mould 4 Axis Cnc Milling Machine
| type | VERTICAL | number of axes | 4 |
| voltage | 220V/380V | table travel (x) (mm) | 600 mm(23.62in) |
| table travel (y) (mm) | 600 mm(23.62in) | table travel (z) (mm) | 200 mm(7.87in) |
| positioning accuracy | 0.001 | repeatability (x/y/z) (mm) | 0.001 |
| spindle taper | BT30 | cnc control system | Siemens |
| machining capacity | Heavy Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High-Accuracy | spindle motor power(kw) | 3 |
| max. table load(kg) | 600 kg(1322.77lb) | range of spindle speed | 1 - 24000 |
| dimension(l*w*h) | 1680*1770*1850mm(66.14*69.69*72.83in) | weight | 1500 |
| Key words | cnc milling machine | Spindle power | 3.0KW Constant Power Spindle |
| Controller | Ncstudio / DSP / TK100 controller | Table | Movable T-slot cast iron table |
| Motor | YASKAWA Servo Motor | Frame | Iron cast structure |
| Guide rail | Taiwan Hiwin Linear Guide Rail | Inverter | Taiwan Delta inverter |
| Marking Materials | Metal Brass Aluminum Iron | Working speed | 8-15m/min |
