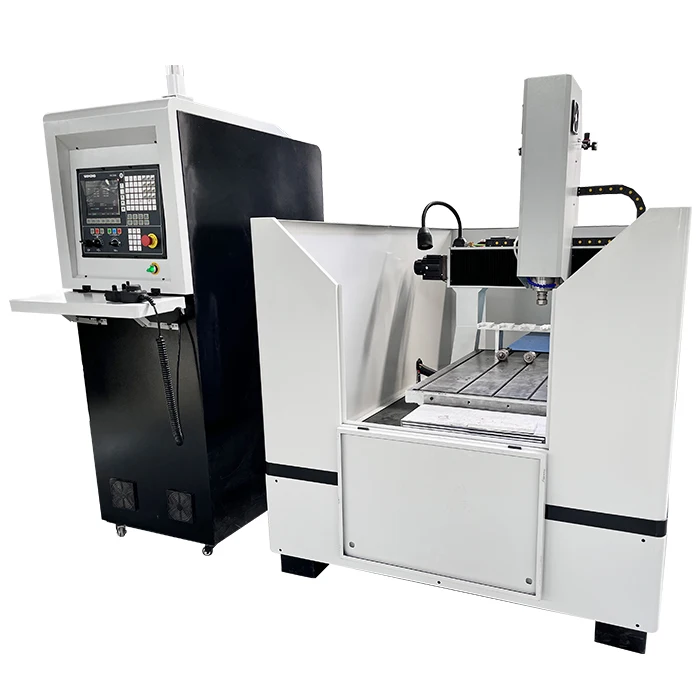

Metal Processing CNC Milling Machine with 3 Axis Small Vertical Mill CNC Machine Cast Iron CNC Router Machine 1325

Metal Processing CNC Milling Machine with 3 Axis Small Vertical Mill CNC Machine Cast Iron CNC Router Machine 1325
  • Metal Processing CNC Milling Machine with 3 Axis Small Vertical Mill CNC Machine Cast Iron CNC Router Machine 1325

    • Metal Processing CNC Milling Machine with 3 Axis Small Vertical Mill CNC Machine Cast Iron CNC Router Machine 1325

    Request a Quote
    Working Table Size(mm)600×600number of axes3
    voltageAC380V/50/60Hz,3PHmachine typemetal milling
    No. of SpindlesSinglekey selling pointsHigh Rigidity
    core componentsBearing, Motor, Gear, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)600range of spindle speed(r.p.m)1 - 24000 rpm
    positioning accuracy (mm)0.02 mm(0in)travel (x axis)(mm)600 mm(23.62in)
    travel (y axis)(mm)600 mm(23.62in)repeatability (x/y/z) (mm)0.02 mm(0in)
    Spindle Motor Power (kw)2.2dimension(l*w*h)1100*1640*950mm(43.31*64.57*37.40in)
    Working area600*600*200mmControl systemMach3 control system
    Spindle2.2kw gdk metal millingMachine structureCast iron
    X, Y, Z TransmissionTBI ball screwGuide railsHIWIN 20 for X, Y, Z axis
    MotorStepper MotorDriverLeadshine
    Table SurfaceT-slot Aluminum tableKeywordcnc machine
