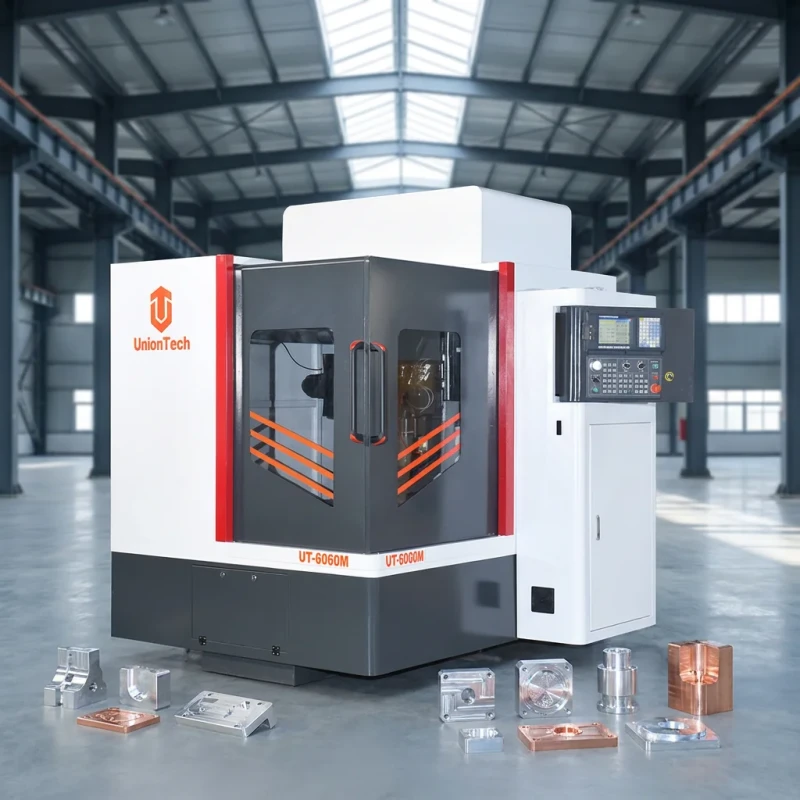

Metal CNC Router CNC Milling Machine with ATC 6 Tools 6090 6060 3 Axis Aluminum Cast Iron
Metal CNC Router CNC Milling Machine with ATC 6 Tools 6090 6060 3 Axis Aluminum Cast Iron
| type | VERTICAL | number of axes | 3 |
| voltage | 380 V, 220 V | table travel (x) (mm) | 600x600x400 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 400 |
| positioning accuracy | ±0.006 | repeatability (x/y/z) (mm) | ±0.005 |
| spindle taper | ISO30 | cnc control system | MACH3 |
| machining capacity | Medium Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Multifunctional, High Safety Level | max. table load(kg) | 200 |
| range of spindle speed | 1 - 24000 | dimension(l*w*h) | 2300*1900*2100 |
| weight | 2500 | Working area | 600*600*400mm |
| Control system | Mach 3 controller American Original | Spindle | 5.5kw ATC spindle |
| Machine structure | Cast iron | X, Y, Z Transmission | TBI ball screw |
| Guide rails | HIWIN 25 for X, Y, Z axis | Certification | Certified by CE/TUV/ISO |
| Waranty | 1 year for the whole machine, 1/2 year warranty for core parts | After-sales Service Provided | Overseas Engineer On-site Service & 24/7 Online Technical Support |
| Usage | Specially designed for soft metals like aluminum and copper |
